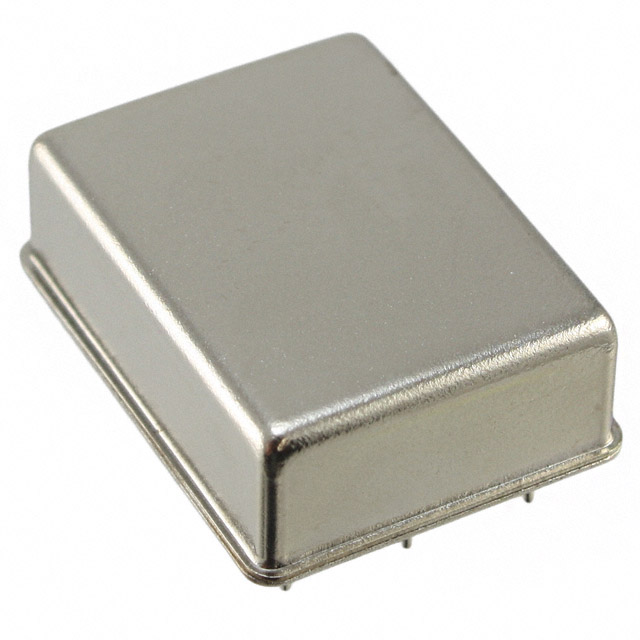

AOCJY5-10.000MHZ
XTAL OSC VCOCXO 10.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOCJY5 series VCOCXO, part number AOCJY5-10-000MHZ, offers a precise 10 MHz output with a frequency stability of ±50ppb. This voltage-controlled crystal oscillator features a sine wave output and operates from a 12V supply, incorporating a standby (power down) function. The component is housed in a 6-DIP (0.701", 17.80mm) package with 5 leads and is designed for through-hole mounting. Its operating temperature range is -55°C to 85°C. The AOCJY5-10-000MHZ is suitable for applications in telecommunications, test and measurement equipment, and industrial control systems requiring highly stable frequency references.
Additional Information
Series: AOCJY5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-DIP (0.701"", 17.80mm), 5 Leads |
| Size / Dimension | 1.421"" L x 1.071"" W (36.10mm x 27.20mm) |
| Mounting Type | Through Hole |
| Output | Sine Wave |
| Function | Standby (Power Down) |
| Type | VCOCXO |
| Operating Temperature | -55°C ~ 85°C |
| Frequency Stability | ±50ppb |
| Voltage - Supply | 12V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.512"" (13.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 10 MHz |
| Base Resonator | Crystal |
