AOCJY4B-13.000MHZ-F
XTAL OSC VCOCXO 13.0000MHZ CMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

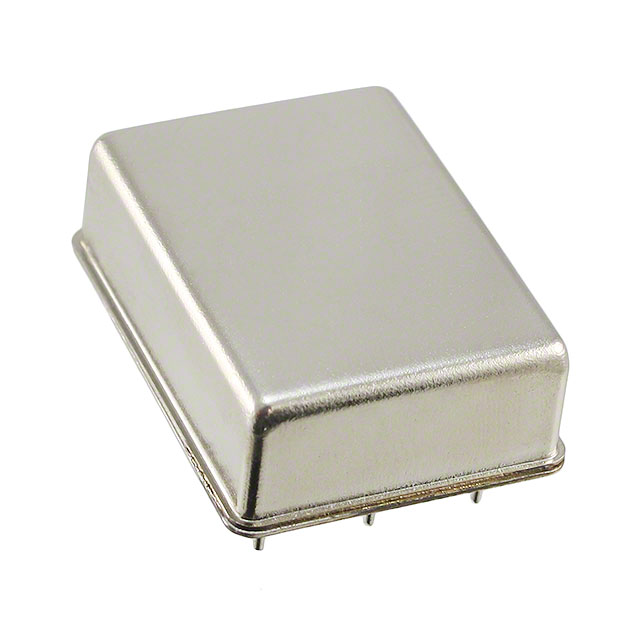

Abracon LLC AOCJY4 series VCOCXO oscillator, part number AOCJY4B-13-000MHZ-F. This voltage-controlled crystal oscillator operates at a base frequency of 13 MHz with a frequency stability of ±10ppb. It features a CMOS output and requires a supply voltage of 12V. The component is housed in a 6-DIP package with 5 leads, measuring 1.421" L x 1.071" W (36.10mm x 27.20mm) with a seated height of 0.512" (13.00mm). This through-hole mounted oscillator is suitable for applications requiring precise frequency control in industrial and telecommunications sectors. It operates within an ambient temperature range of -40°C to 75°C and is supplied in trays.
Additional Information
Series: AOCJY4RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-DIP (0.701"", 17.80mm), 5 Leads |
| Size / Dimension | 1.421"" L x 1.071"" W (36.10mm x 27.20mm) |
| Mounting Type | Through Hole |
| Output | CMOS |
| Function | - |
| Type | VCOCXO |
| Operating Temperature | -40°C ~ 75°C |
| Frequency Stability | ±10ppb |
| Voltage - Supply | 12V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.512"" (13.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 13 MHz |
| Base Resonator | Crystal |
