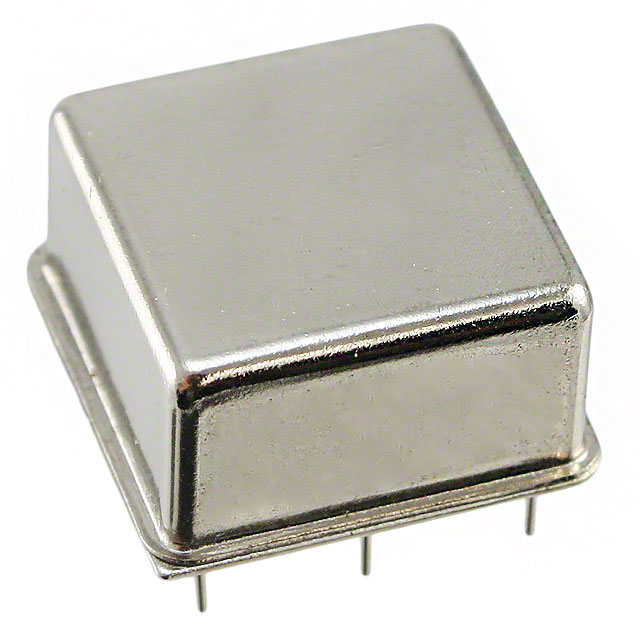

AOCJY2A-10.000MHZ-E-SW
XTAL OSC VCOCXO 10.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOCJY2 Series VCOCXO, part number AOCJY2A-10-000MHZ-E-SW, is a 10 MHz voltage-controlled crystal oscillator with a sine wave output. This component features a frequency stability of ±10ppb and operates from a 5V supply. The package is a 6-DIP (0.600", 15.24mm) with 5 leads, suitable for through-hole mounting. Dimensions are 0.827" L x 0.827" W (21.00mm x 21.00mm) with a maximum seated height of 0.453" (11.50mm). This VCOCXO is designed for applications requiring precise frequency control, commonly found in telecommunications infrastructure, test and measurement equipment, and high-reliability control systems. The part is supplied in tray packaging.
Additional Information
Series: AOCJY2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-DIP (0.600"", 15.24mm), 5 Leads |
| Size / Dimension | 0.827"" L x 0.827"" W (21.00mm x 21.00mm) |
| Mounting Type | Through Hole |
| Output | Sine Wave |
| Function | - |
| Type | VCOCXO |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±10ppb |
| Voltage - Supply | 5V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.453"" (11.50mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 10 MHz |
| Base Resonator | Crystal |
