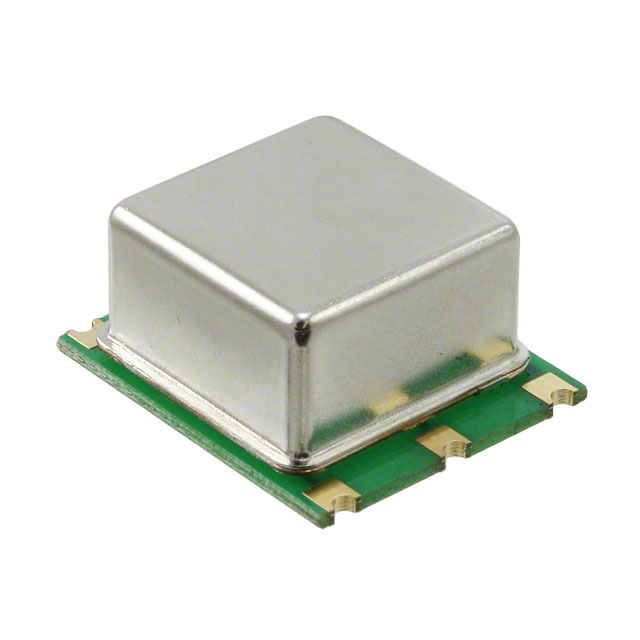

AOCJY-100.000MHZ-E-SW
XTAL OSC VCOCXO 100.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOCJY series VCOCXO oscillator, part number AOCJY-100-000MHZ-E-SW. This Voltage Controlled Crystal Oscillator operates at a frequency of 100 MHz with a frequency stability of ±10ppb. It features a Sine Wave output and a Standby (Power Down) function. The device is supplied with a 3.3V supply voltage and is housed in a 6-SMD, No Lead, 5 Leads package suitable for surface mounting. Dimensions are 1.000" L x 0.866" W with a seated height of 0.500". Operating temperature range is -20°C to 70°C. This component is utilized in industrial and telecommunications applications.
Additional Information
Series: AOCJYRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-SMD, No Lead, 5 Leads |
| Size / Dimension | 1.000"" L x 0.866"" W (25.40mm x 22.00mm) |
| Mounting Type | Surface Mount |
| Output | Sine Wave |
| Function | Standby (Power Down) |
| Type | VCOCXO |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±10ppb |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.500"" (12.70mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | Crystal |
