AOC2012XAJC-19.4400C
XTAL OSC OCXO 19.4400MHZ CMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOC2012 series OCXO oscillator, part number AOC2012XAJC-19-4400C. This Oven Controlled Crystal Oscillator (OCXO) provides a stable 19.44 MHz output with CMOS compatibility. Engineered for demanding applications requiring precise frequency control, it offers a frequency stability of ±10ppb across an operating temperature range of -20°C to 70°C. The component operates from a 3.3V supply and draws a maximum current of 289mA. It is housed in a 14-SMD, No Lead, 4-Lead package with dimensions of 0.800" L x 0.500" W (20.32mm x 12.70mm) and a maximum seated height of 0.433" (11.00mm). This surface-mount device is suitable for applications in telecommunications, test and measurement, and high-precision timing systems.
Additional Information
Series: AOC2012RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 14-SMD, No Lead, 4 Leads |
| Size / Dimension | 0.800"" L x 0.500"" W (20.32mm x 12.70mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | - |
| Type | OCXO |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±10ppb |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 289mA |
| Height - Seated (Max) | 0.433"" (11.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 19.44 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

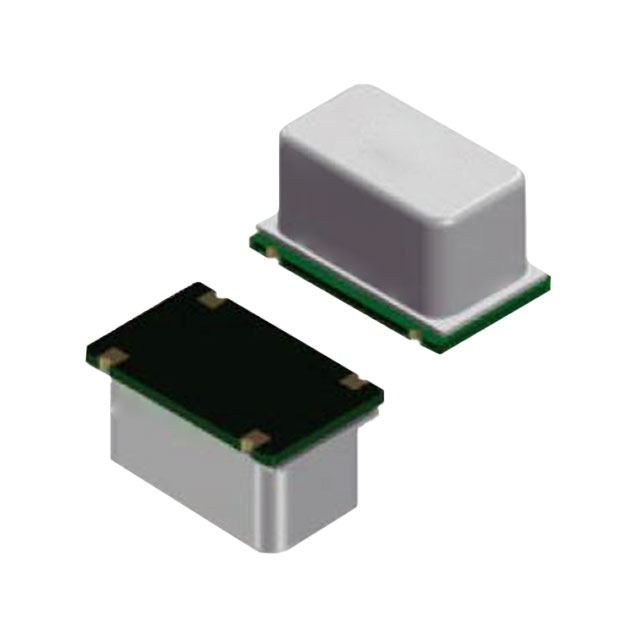

AOC2012VAJC-10.0000C
