AOC1409XAUC-20.0000T1
XTAL OSC OCXO 20.0000MHZ CMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

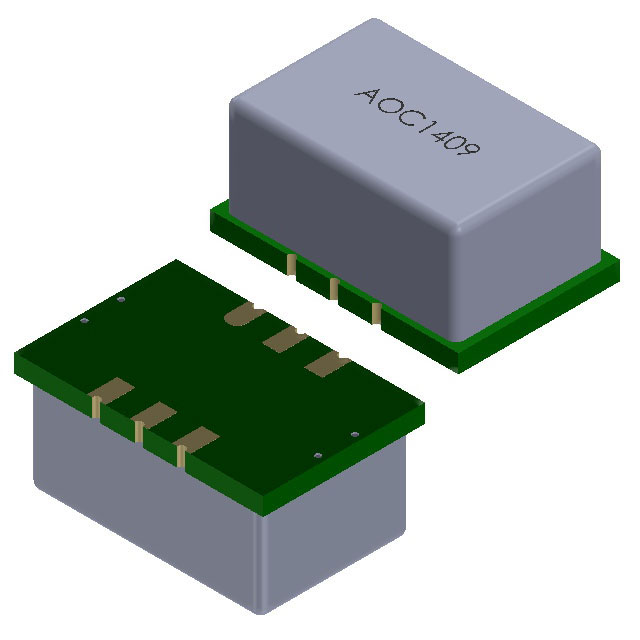

Abracon LLC AOC1409 series OCXO, part number AOC1409XAUC-20-0000T1, provides a stable 20 MHz CMOS output. This oven-controlled crystal oscillator (OCXO) features a frequency stability of ±10ppb across an operating temperature range of -40°C to 85°C. Designed for surface mounting, it utilizes a 6-SMD, No Lead package with dimensions of 0.587" L x 0.382" W (14.90mm x 9.70mm) and a maximum seated height of 0.276" (7.00mm). The component operates from a 3.3V supply and has a maximum supply current of 289mA. This high-precision oscillator is suitable for demanding applications in telecommunications and test and measurement equipment. The AOC1409XAUC-20-0000T1 is supplied on tape and reel.
Additional Information
Series: AOC1409RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.587"" L x 0.382"" W (14.90mm x 9.70mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | - |
| Type | OCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±10ppb |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 289mA |
| Height - Seated (Max) | 0.276"" (7.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 20 MHz |
| Base Resonator | Crystal |
