ACOL-4.000MHZ-EK
XTAL OSC XO 4.0000MHZ HCMOS TTLManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ACOL series XO oscillator, part number ACOL-4-000MHZ-EK, provides a stable 4 MHz output frequency with a ±30ppm stability. This HCMOS/TTL compatible device operates at a 3.3V supply voltage and features an enable/disable function. The oscillator is housed in a 14-DIP, 4-lead full-size metal can package, designed for through-hole mounting. Its dimensions are 0.795" L x 0.496" W with a maximum seated height of 0.200". The maximum supply current is 20mA. This component is suitable for applications in the telecommunications and industrial sectors.
Additional Information
Series: ACOLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Size / Dimension | 0.795"" L x 0.496"" W (20.20mm x 12.60mm) |
| Mounting Type | Through Hole |
| Output | HCMOS, TTL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±30ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 20mA |
| Height - Seated (Max) | 0.200"" (5.08mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 4 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

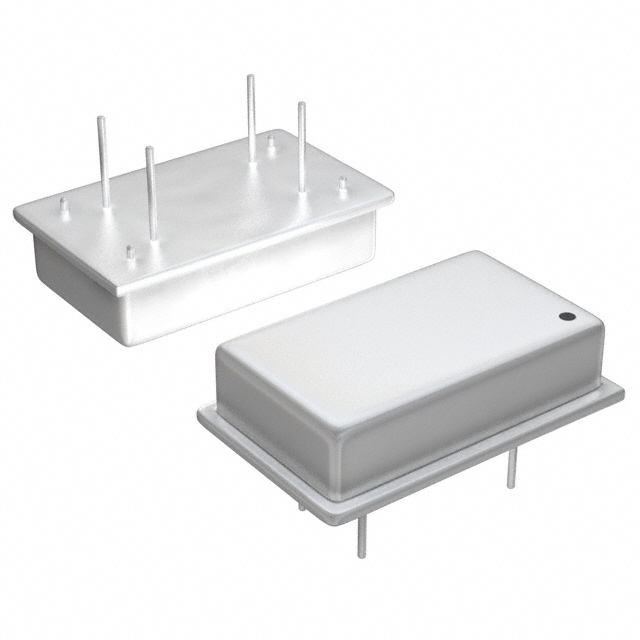

ACOL-10.000MHZ-EK
