ABDFTCXO-40.000MHZ-E-2-CT
XTAL OSC TCXO 40.0000MHZ LVCMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ABDFTCXO series TCXO oscillator, part number ABDFTCXO-40-000MHZ-E-2-CT. This 40 MHz, LVCMOS output device operates from a 3.3V supply, drawing a maximum of 20mA. The ABDFTCXO-40-000MHZ-E-2-CT offers a frequency stability of ±280ppb over an operating temperature range of -20°C to 70°C. It is housed in a 14-SMD, No Lead package with dimensions of 0.559" L x 0.360" W and a maximum seated height of 0.122". This component is suitable for applications in telecommunications, industrial control, and consumer electronics.
Additional Information
Series: ABDFTCXORoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 14-SMD, No Lead |
| Size / Dimension | 0.559"" L x 0.360"" W (14.20mm x 9.15mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | - |
| Type | TCXO |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±280ppb |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 20mA |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 40 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

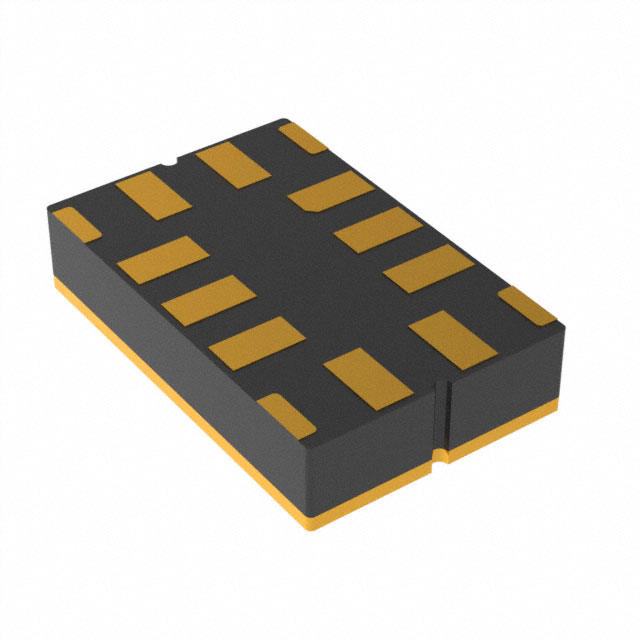

ABDFTCXO-16.384MHZ-L-2-CT
