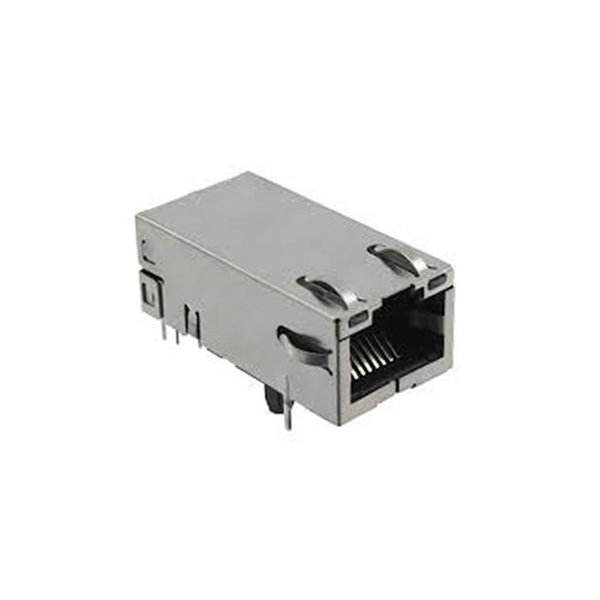

ARJP11A-MASA-B-A-EMU2
CONN JACK 1PORT 100 BASE-TX PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJP11A series modular connector jack, part number ARJP11A-MASA-B-A-EMU2, offers a single-port RJ45 solution for 10/100 Base-TX Ethernet applications. This through-hole component features AutoMDIX and Power over Ethernet (PoE) capability, simplifying network connectivity and power delivery. The design includes a shielded housing with EMI finger for robust signal integrity. Key specifications include a height above board of 0.545 inches (13.84mm), gold-plated contacts for reliable connection, and integrated yellow/green LEDs for link status indication. The connector is designed with a 90° angle orientation and board lock feature for secure PCB mounting. This component is suitable for use in networking equipment, industrial automation, and telecommunications infrastructure.
Additional Information
Series: ARJP11ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE) |
| Termination | Solder |
| LED Color | Yellow - Green |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.545"" (13.84mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

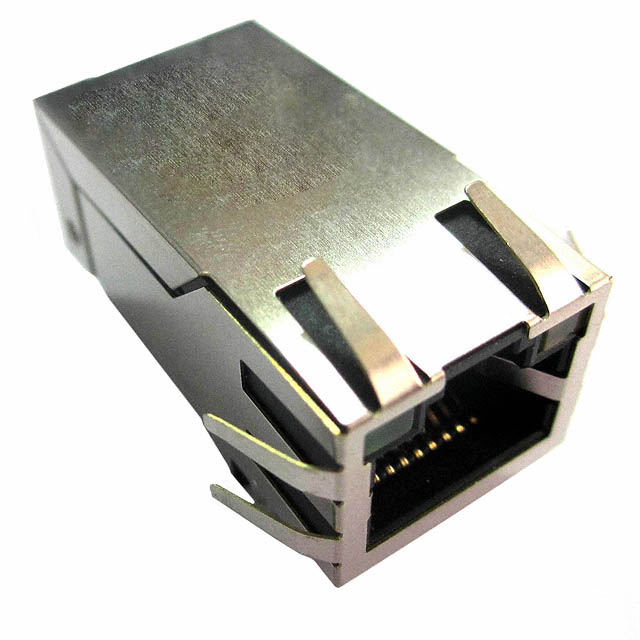

ARJP11A-MBSB-A-B-EMU2
