ARJM11D7-001-AD-CW2
CONN JACK 1PORT 100 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

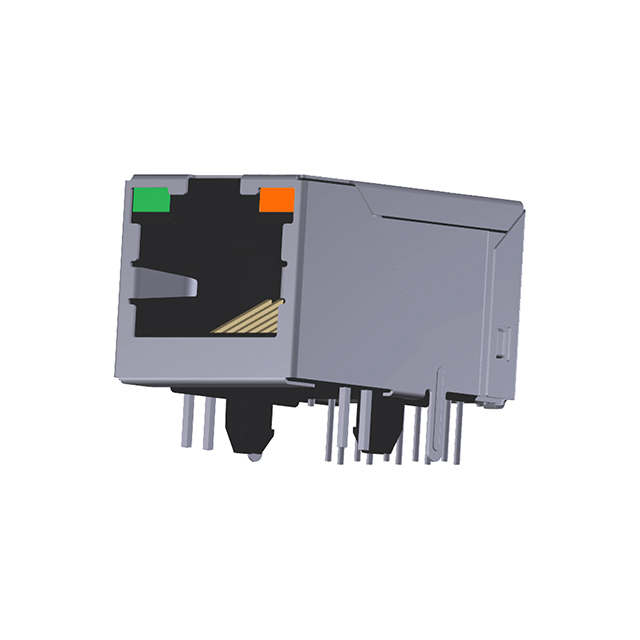

Abracon LLC ARJM11D7-001-AD-CW2 is a single-port, 10/100 Base-T RJ45 modular connector jack designed for PCB mounting. This through-hole component features a 90° right-angle orientation with a board lock for enhanced mechanical stability. The connector is shielded and includes integrated magnetics, supporting AutoMDIX functionality for simplified network cabling. It is equipped with Green and Orange LEDs for link and activity indication. The contact finish is gold, ensuring reliable conductivity. This component is suitable for applications requiring robust and efficient Ethernet connectivity, commonly found in industrial automation, networking equipment, and consumer electronics. The ARJM11 series connector is supplied in a tray package.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Orange |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.543"" (13.80mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
