ARJM11C7-504-AB-ER2-T
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

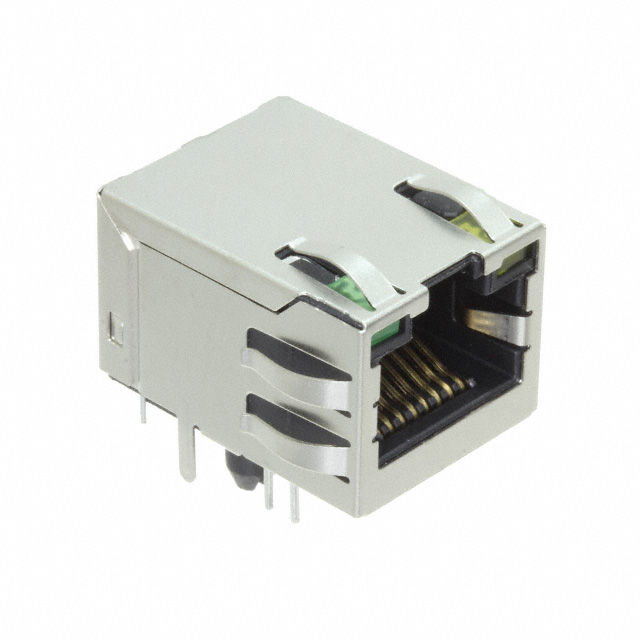

Abracon LLC ARJM11 series ARJM11C7-504-AB-ER2-T is a shielded, through-hole RJ45 connector offering 1 port for 10/100/1000 Base-T Ethernet connectivity with AutoMDIX support. This single-row, 90-degree angle connector features gold-plated contacts for reliable signal integrity and a board lock for enhanced mechanical stability. The integrated magnetics facilitate 10/100/1000 Base-T operation. Visual status indication is provided by integrated Green and Yellow LEDs. Designed for demanding applications, this component is suitable for use in industrial networking, telecommunications equipment, and embedded systems requiring robust Ethernet interfaces. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tape & Reel (TR) |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.543"" (13.80mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
