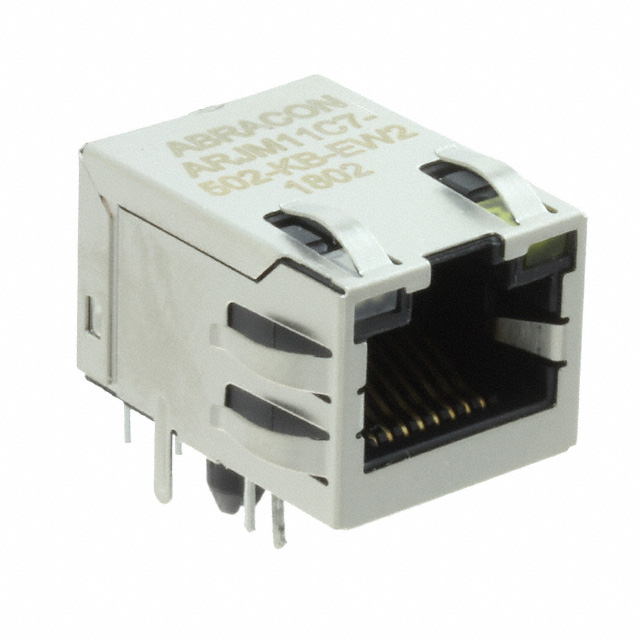

ARJM11C7-502-AB-EW2
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJM11 Series ARJM11C7-502-AB-EW2 is a shielded, right-angle, through-hole RJ45 modular connector jack. This single-port component supports 10/100/1000 Base-T Ethernet connectivity with AutoMDIX functionality. It features a gold contact finish and includes a board lock for enhanced mechanical stability. The connector has a height of 0.543 inches (13.80mm) above the board and incorporates dual LED indicators (Green/Yellow) for link status and activity. Designed for robust performance, it is suitable for applications in networking equipment, industrial automation, and telecommunications infrastructure. The component is supplied in tray packaging and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.543"" (13.80mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
