ARJM11B1-811-AB-EW2
CONN JACK 1PORT 5G BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

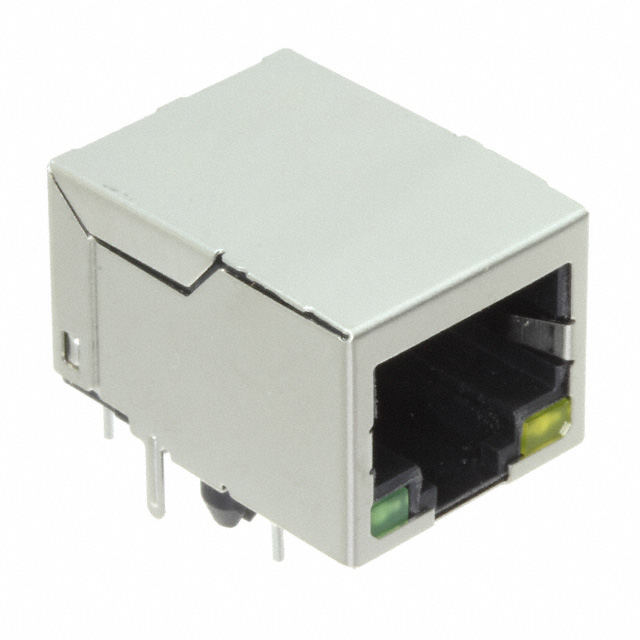

Abracon LLC ARJM11B1-811-AB-EW2 is a single-port, 5G Base-T RJ45 modular jack designed for PCB mounting. This through-hole component features a 90° angle orientation with a down tab direction and shielded construction. It supports AutoMDIX functionality and includes integrated magnetics for enhanced signal integrity. The jack has gold-plated contacts and a board lock feature for secure mounting. It is rated for operation between -40°C and 85°C and offers dual-color LEDs (Green/Yellow) for link and activity status indication. This component is commonly utilized in networking infrastructure, telecommunications equipment, and industrial automation systems requiring high-speed Ethernet connectivity.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 5G Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
