ARJM11B1-577-KB-EW2
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

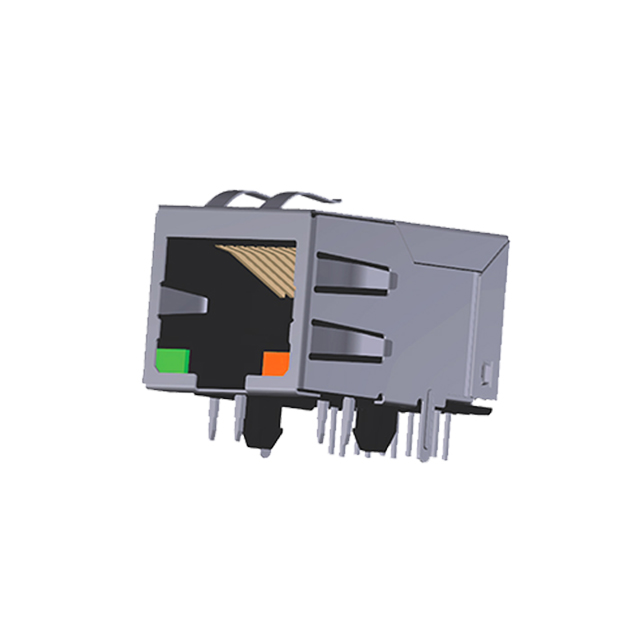

Abracon LLC ARJM11 Series ARJM11B1-577-KB-EW2 is a shielded, single-port RJ45 modular connector jack designed for PCB mounting. This through-hole component supports 10/100/1000 Base-T Ethernet connectivity with Auto-MDIX functionality. It features gold-plated contacts and integrated magnetics for reliable signal transmission. The connector has a height of 0.535 inches (13.59mm) above the board and includes a board lock for enhanced mechanical stability. Onboard LEDs are present with green and orange/yellow indicators. The ARJM11B1-577-KB-EW2 is suitable for applications requiring robust wired network interfaces, commonly found in industrial automation, networking equipment, and consumer electronics. It is supplied in tray packaging and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green, Orange - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

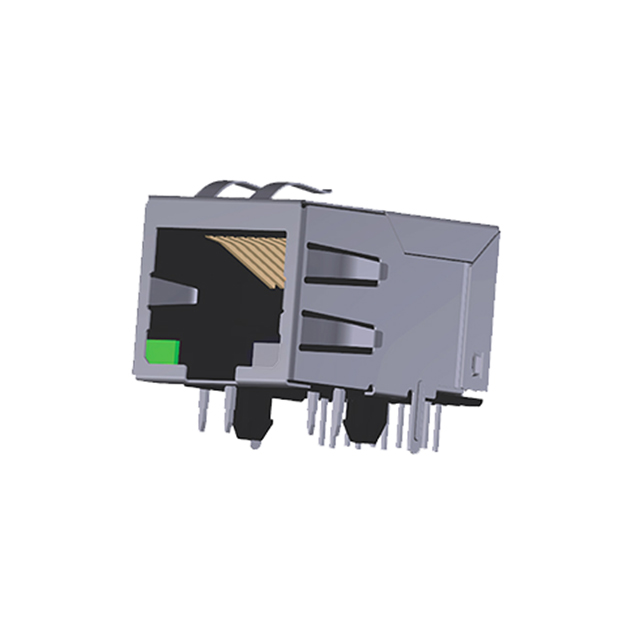

ARJM11A1-001-AB-CW2
