ARJM11B1-502-NN-EW2
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

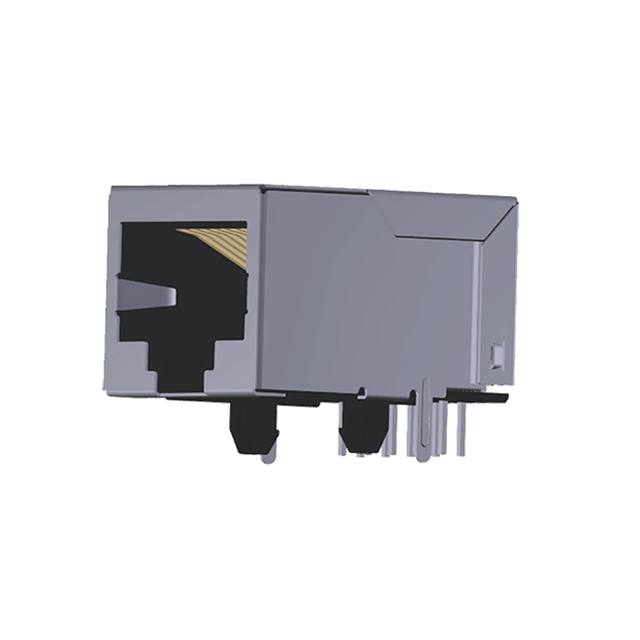

Abracon LLC ARJM11 Series ARJM11B1-502-NN-EW2 is a single-port, through-hole RJ45 connector designed for 10/100/1000 Base-T Ethernet applications. This shielded modular jack supports AutoMDIX and features a 90-degree (right angle) orientation with a height above board of 0.535" (13.59mm). The contact finish is gold, and the component includes a board lock for enhanced mechanical stability. It is supplied in trays. This connector is suitable for networking equipment, industrial automation, and communication systems requiring reliable wired Ethernet connectivity. The connector is rated for an operating temperature range of -40°C to 85°C.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
