ARJM11B1-502-AB-EW2
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

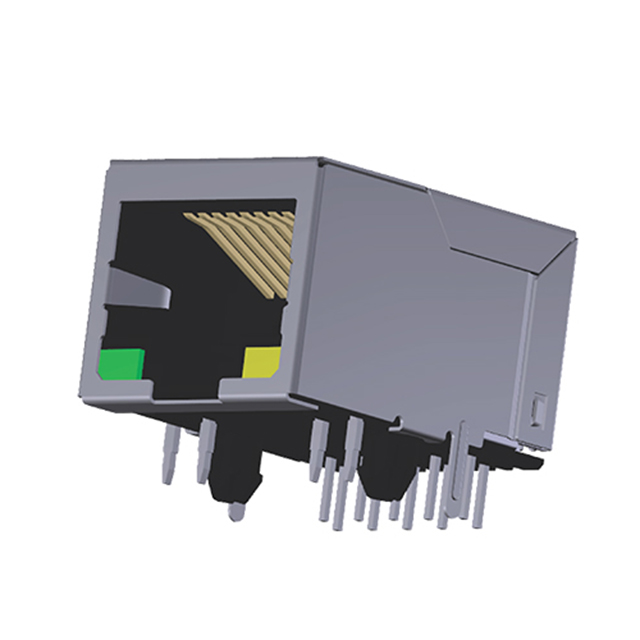

Abracon LLC ARJM11B1-502-AB-EW2 is a shielded, single-port RJ45 connector with integrated magnetics, supporting 10/100/1000 Base-T Ethernet connectivity and Auto-MDIX. This through-hole mount component features gold-plated contacts for reliable signal integrity and a board lock for enhanced mechanical stability. The compact design offers a height of 0.535" (13.59mm) above the board and includes dual color LEDs (Green/Yellow) for link and activity indication. Designed for 90° (right-angle) orientation, it is suitable for demanding applications in networking equipment, industrial automation, and telecommunications systems. The component is supplied in tray packaging.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
