ARJM11B1-001-AD-CW2
CONN JACK 1PORT 100 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

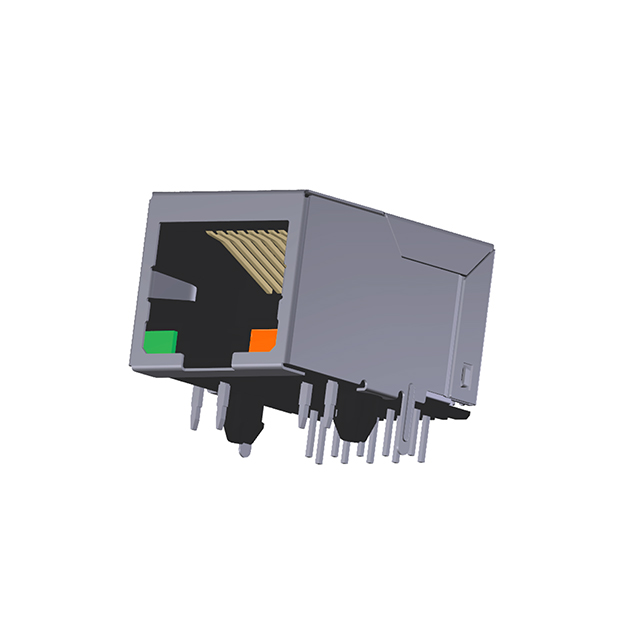

Abracon LLC ARJM11B1-001-AD-CW2 is a single-port, 10/100 Base-T RJ45 modular jack with integrated magnetics. Designed for through-hole mounting with a 90° angle orientation, this shielded connector features a board lock for enhanced mechanical stability. The contact finish is gold, ensuring reliable signal integrity. This component supports AutoMDIX functionality and includes green and orange LEDs for link and activity status indication. Ideal for applications in networking equipment, industrial automation, and telecommunications infrastructure, the ARJM11 series offers robust performance and reliable connectivity. The connector is supplied in tray packaging.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Orange |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
