ARJM11A1-009-BA-EW2
CONN JACK 1PORT 100 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

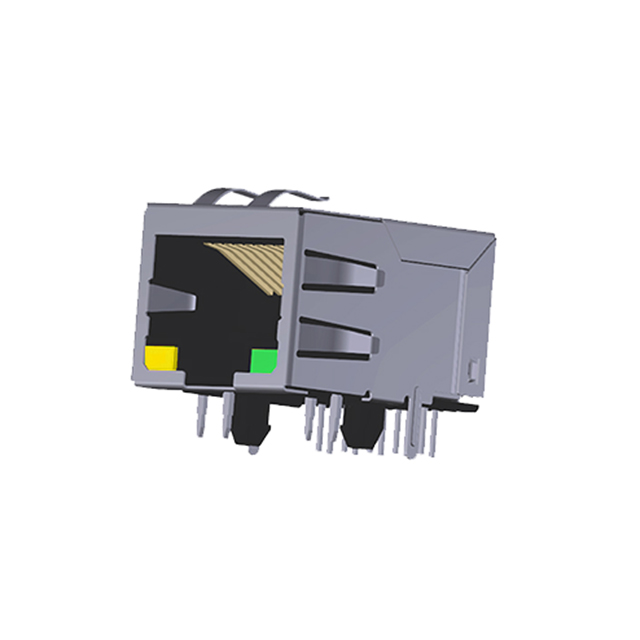

Abracon LLC ARRJ11 series ARJM11A1-009-BA-EW2 is a single-port, 10/100 Base-T RJ45 connector designed for robust PCB mounting. This shielded, through-hole component features a 90° angle orientation and a height of 0.535 inches (13.59mm) above the board. Integrated magnetics, indicated by the inclusion of Yellow/Green LEDs, support AutoMDIX functionality for simplified network configuration. The connector is constructed with gold-plated contacts for reliable signal integrity and includes a board lock feature for enhanced mechanical stability. Its four cores per jack and EMI finger shielding are optimized for demanding applications in networking equipment and industrial automation systems. The ARJM11A1-009-BA-EW2 is supplied in tray packaging and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: ARJM11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Yellow - Green |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
