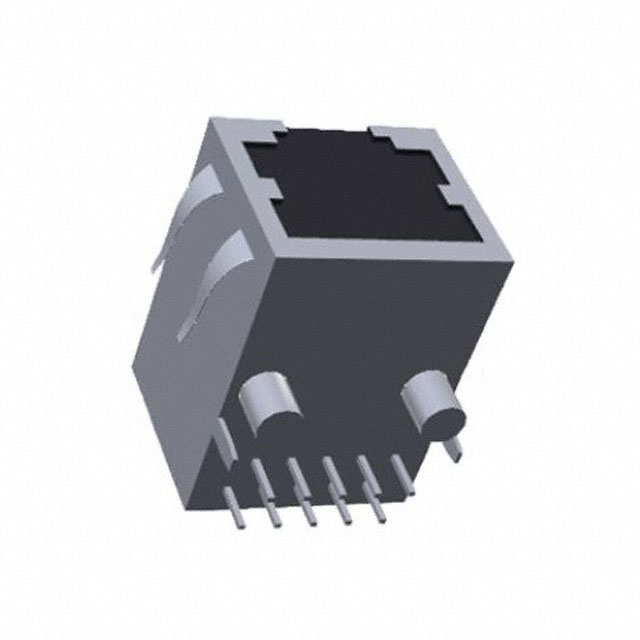

ARJE-0040
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJE-0040 is a single-port, through-hole mounted RJ45 connector designed for 10/100/1000 Base-T Ethernet applications. This shielded connector features EMI fingers for enhanced signal integrity and includes a board guide for secure PCB placement. The 90° (right) orientation and 0.555" (14.10mm) height above board make it suitable for compact networking equipment designs. It supports AutoMDIX functionality and is packaged in trays for efficient component handling. This component is commonly utilized in networking infrastructure, industrial automation, and telecommunications equipment where reliable Gigabit Ethernet connectivity is essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | - |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | - |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.555"" (14.10mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
