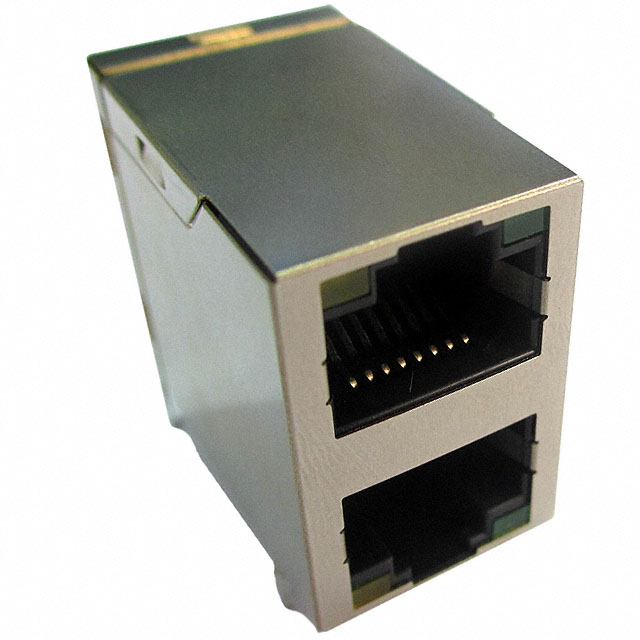

ARJ21A-MBSD-A-B-EMU2
CONN JACK 2PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC's ARJ21A-MBSD-A-B-EMU2 is a shielded, two-port RJ45 modular connector jack designed for through-hole mounting. This component supports 10/100 Base-T applications, featuring gold-plated contacts for reliable connectivity. The ARJ21A series connector offers a compact design with a height of 0.996 inches above the board and includes board lock features for enhanced mechanical stability. Integrated magnetics are present, indicated by the inclusion of green and yellow LEDs for link and activity status. Each jack contains four cores, and the connector is oriented at a 90° angle for right-angle PCB integration. This component is commonly utilized in networking infrastructure, industrial automation, and data acquisition systems.
Additional Information
Series: ARJ21ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-T |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.996"" (25.30mm) |
| Tab Direction | Up and Down |
| Contact Material | - |
| Number of Ports | 2 |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

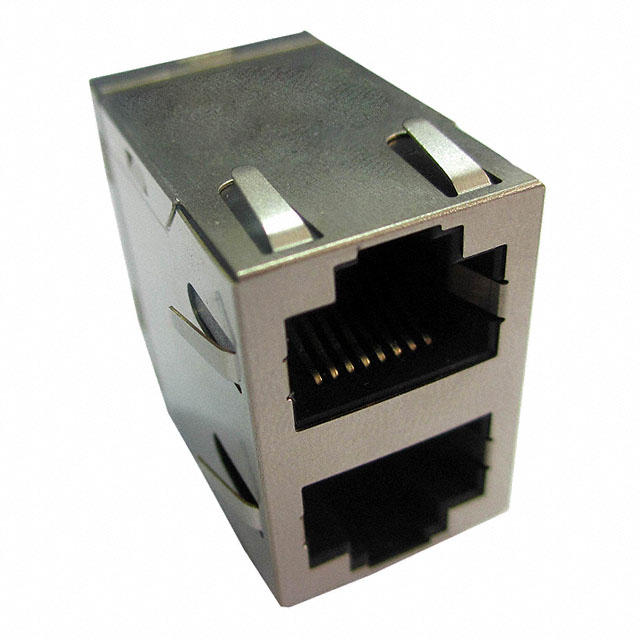

ARJ21A-MCSB-MU2
