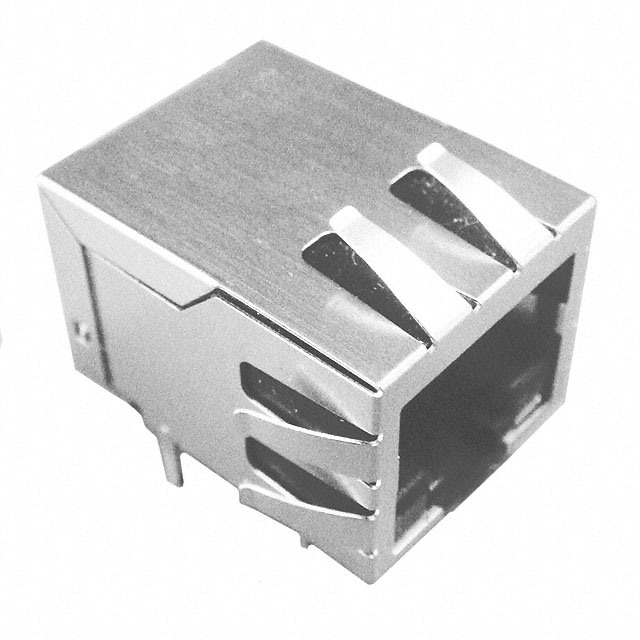

ARJ11F-MASB-A-B-EM2
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJ11F Series, part number ARJ11F-MASB-A-B-EM2, is a shielded, 1-port RJ45 modular connector jack with integrated magnetics. This through-hole component supports 10/100/1000 Base-T Ethernet speeds and features AutoMDIX. The connector is designed for a 90° angle (Right) orientation with a height above board of 0.531" (13.49mm). It includes internal EMI fingers for enhanced shielding and a board lock for secure mounting. The LED indicators are Green and Yellow. This component is suitable for applications in networking equipment, industrial automation, and telecommunications. The contact finish is gold. It is supplied in tray packaging.
Additional Information
Series: ARJ11FRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.531"" (13.49mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
