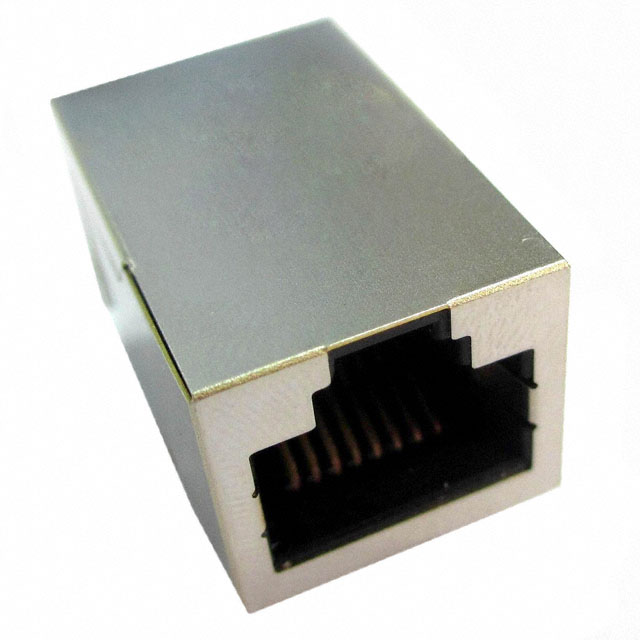

ARJ11E-MCSA-A-B-EM2
CONN JACK 1PORT 1000 BASE-TX PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJ11E-MCSA-A-B-EM2 is a shielded, single-port RJ45 modular connector with integrated magnetics, designed for 10/100/1000 Base-TX Ethernet applications. This through-hole component features a right-angle orientation and a down-facing tab, with gold-plated contacts for reliable connectivity. The ARJ11E series connector includes an EMI finger for enhanced shielding and a board lock for mechanical stability. It supports AutoMDIX functionality and is supplied in a tray package. The operating temperature range is 0°C to 70°C. This component is suitable for use in networking infrastructure and industrial automation.
Additional Information
Series: ARJ11ERoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100/1000 Base-TX, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.545"" (13.84mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
