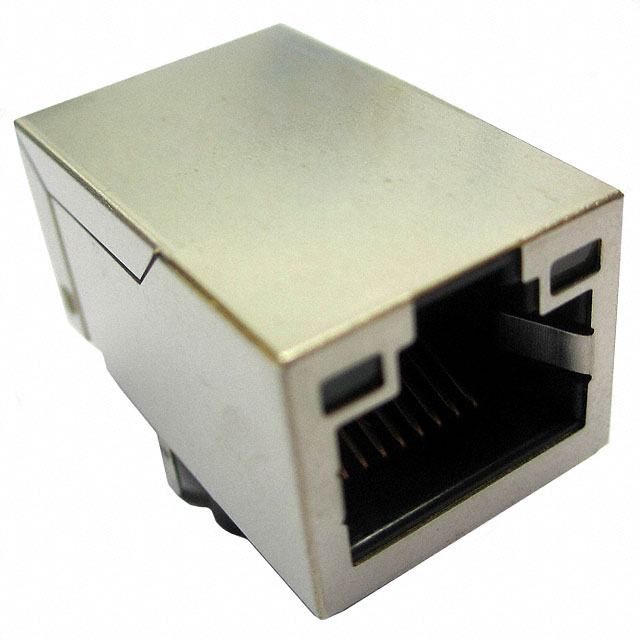

ARJ11D-MDSE-A-B-GMU2
CONN JACK 1PORT 100 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC's ARJ11D-MDSE-A-B-GMU2 is a single-port, shielded RJ45 modular connector jack designed for PCB mounting. This ARJ11D series component offers 10/100 Base-T connectivity with AutoMDIX functionality, simplifying network cable connections. Featuring a through-hole mounting type and a 90° angle orientation, it is suitable for right-angle applications. The connector includes integrated magnetics and gold-plated contacts for reliable signal integrity. The design incorporates a board lock for enhanced mechanical stability. Operational temperature range is 0°C to 70°C. This component is commonly utilized in networking equipment, industrial automation, and telecommunications infrastructure.
Additional Information
Series: ARJ11DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.545"" (13.84mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

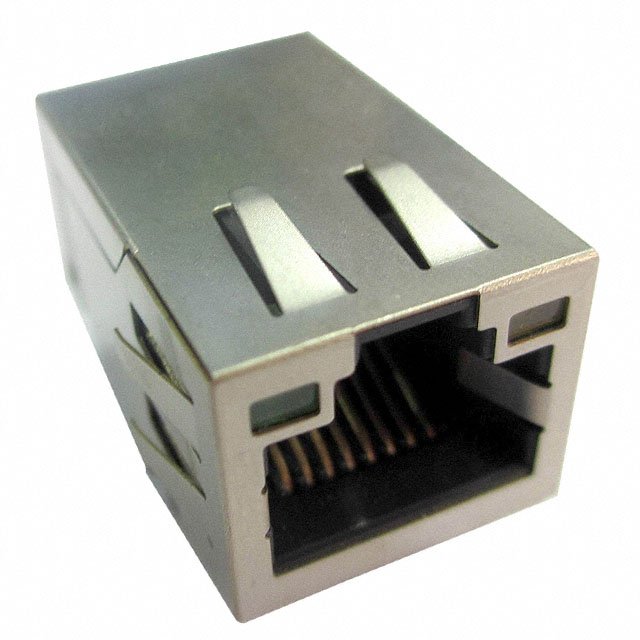

ARJ11D-MASG-A-A-EMU2
CONN JACK 1PORT 100 BASE-T PCB
ARJ11D-MASG-A-A-GMU2
CONN JACK 1PORT 100 BASE-T PCB

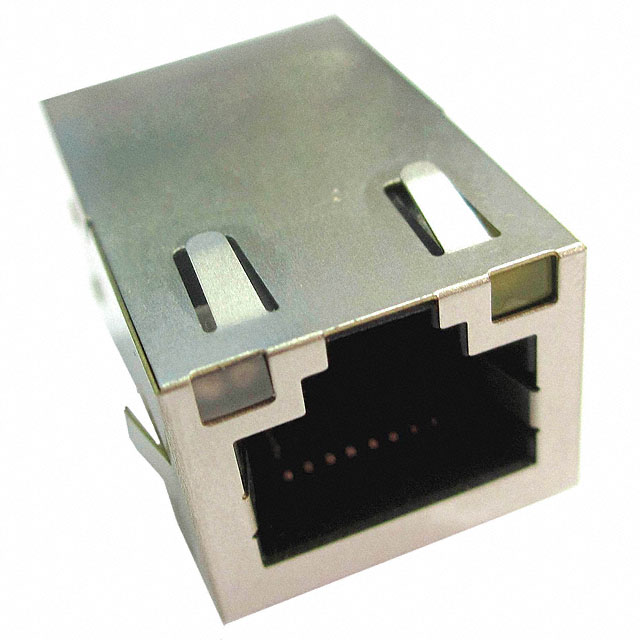

ARJ11D-MBSK-A-B-IMU2
