ARJ11C-MBSAT-A-B-4MU2
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJ11C-MBSAT-A-B-4MU2 is a single-port, shielded RJ45 connector designed for PCB mounting. This modular jack supports 10/100/1000 Base-T Ethernet connectivity with integrated AutoMDIX functionality. Featuring a through-hole mounting type and a 90° angle orientation, the ARJ11C-MBSAT-A-B-4MU2 provides a secure board lock mechanism. The contact finish is gold, and it includes an EMI finger for enhanced shielding. The component operates within a temperature range of 0°C to 70°C and has a height above the board of 0.535 inches (13.59mm). It is equipped with green and yellow LEDs for link and activity indication. This connector is commonly utilized in networking equipment, industrial automation, and telecommunications infrastructure.
Additional Information
Series: ARJ11CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.535"" (13.59mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

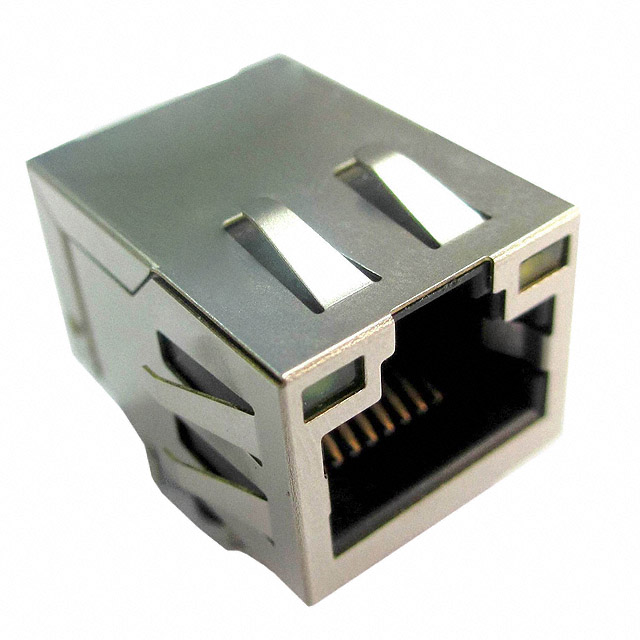

ARJ11C-MASAA-B-A-1LU2
CONN JACK 1PORT 1000 BASE-T PCB
ARJ11C-MASAB-B-A-1MU2
CONN JACK 1PORT 100 BASE-T PCB

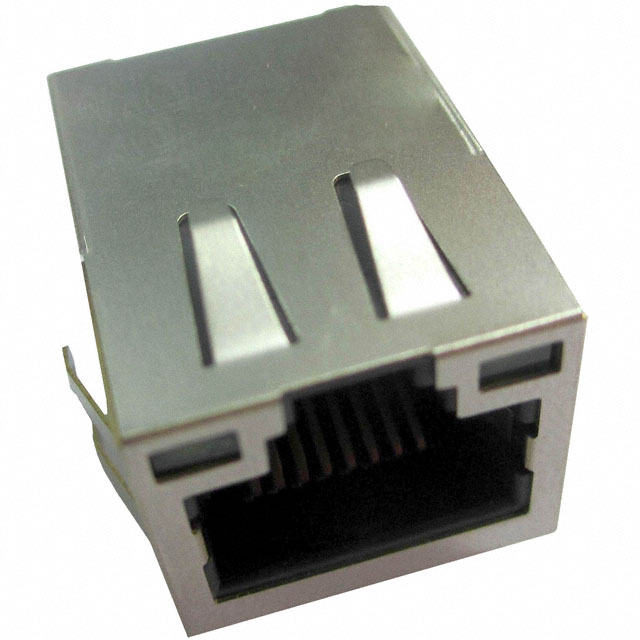

ARJ11C-MBSAS-A-BA-7MU2
