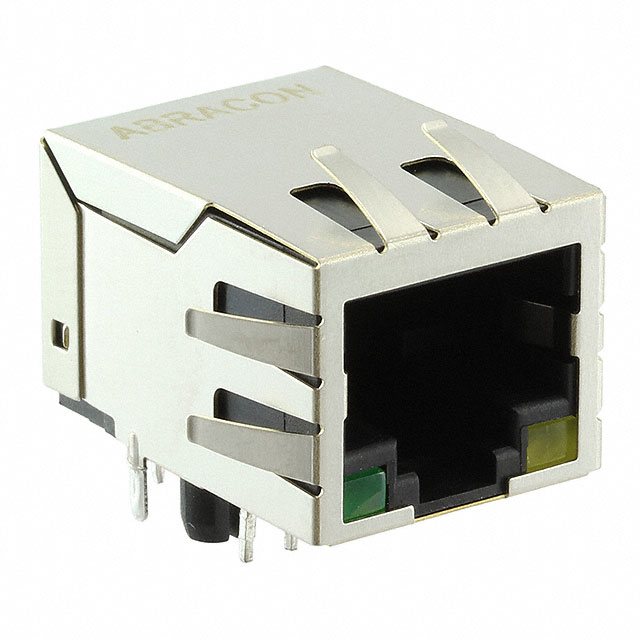

ARJ11B-MBSAI-A-B-EMU2
CONN JACK 1PORT 100 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
Abracon LLC ARJ11B-MBSAI-A-B-EMU2 is a shielded, single-port RJ45 connector with integrated magnetics, designed for 10/100 Base-T Ethernet applications. This through-hole component features a 90-degree (right) angle orientation and a 0.545" height above board. The ARJ11B series connector incorporates AutoMDIX functionality and includes both green and yellow LEDs for link and activity indication. Its construction offers a board lock feature for enhanced mechanical stability. The contact finish is gold, and it is supplied in tray packaging. This component is typically utilized in networking equipment, telecommunications infrastructure, and industrial automation systems.
Additional Information
Series: ARJ11BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 4 |
| Height Above Board | 0.545"" (13.84mm) |
| Tab Direction | Down |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

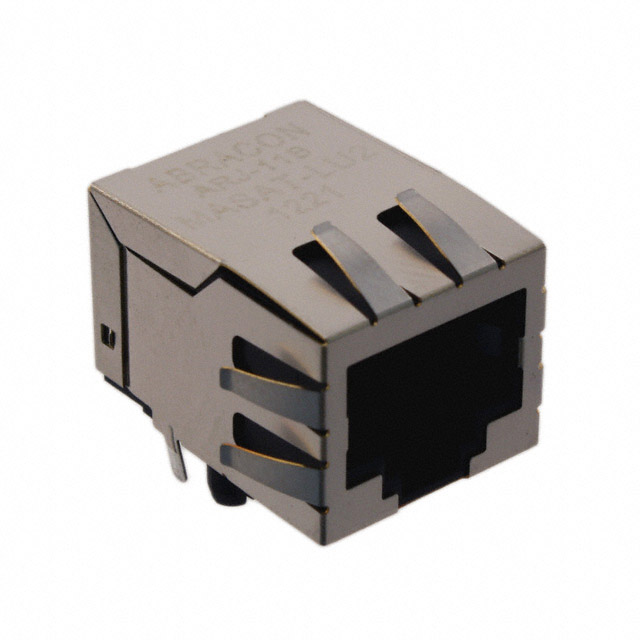

ARJ11B-MASAT-LU2
CONN JACK 1PORT 100 BASE-T PCB
ARJ11B-MASBR-QU2
CONN JACK 1PORT 100 BASE-T PCB

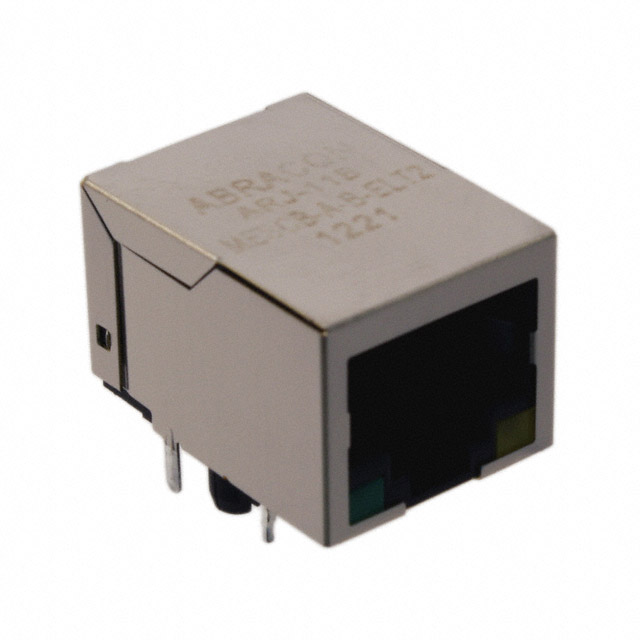

ARJ11B-MESAO-A-B-ELU2
