ARJ-139
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: Abracon LLC
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More

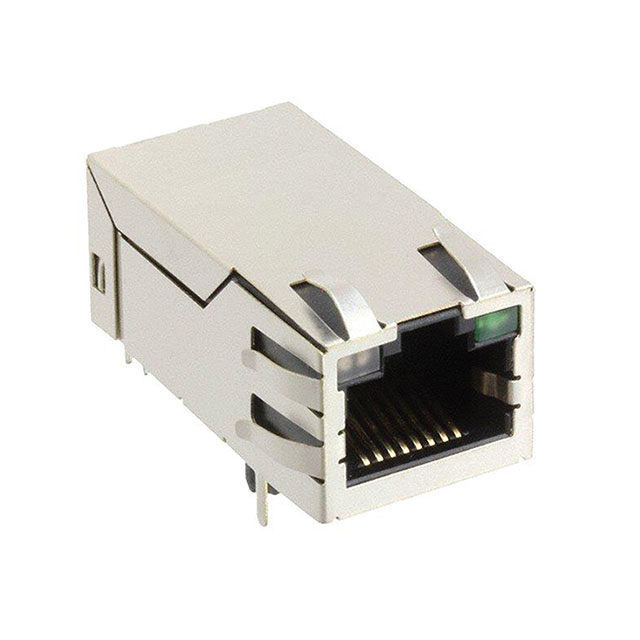

Abracon LLC ARJ Series RJ45 connector, part number ARJ-139, is a shielded, through-hole mounted modular jack designed for 10/100/1000 Base-T Ethernet applications. This single-port component features AutoMDIX functionality and supports Power over Ethernet+ (PoE+). The connector has a right-angle orientation with a height above board of 0.531 inches (13.49mm). It includes integrated magnetics and EMI fingers for enhanced signal integrity and noise reduction. The ARJ-139 is equipped with status LEDs, typically green and orange/yellow. Its robust construction makes it suitable for demanding industrial networking, telecommunications, and data acquisition systems. The component is supplied in tray packaging.
Additional Information
Series: ARJRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | - |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+) |
| Termination | Solder |
| LED Color | Green, Orange - Yellow |
| Number of Cores per Jack | 12 |
| Height Above Board | 0.531"" (13.49mm) |
| Tab Direction | Up |
| Contact Material | - |
| Number of Ports | 1 |
| Number of Rows | 1 |
