ATL-1Z130835SR15MT
IND TLVR 150NH 30A 0.18MOHMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

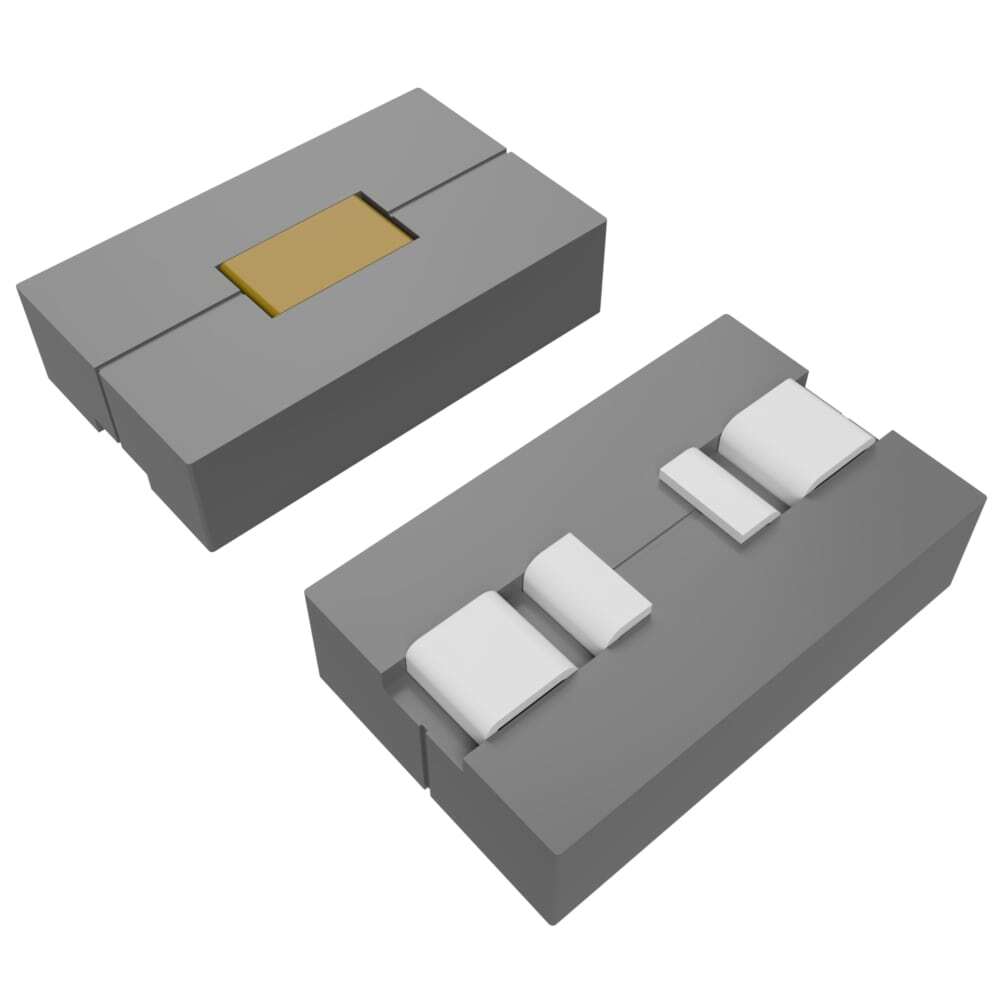

150 nH Unshielded Molded Inductor 55 A 0.18mOhm Nonstandard, 4 Lead
Additional Information
Series: ATL-1Z130835SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard, 4 Lead |
| Size / Dimension | 0.504"" L x 0.307"" W (12.80mm x 7.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.18mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 30A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.138"" (3.50mm) |
| Inductance | 150 nH |
| Current Rating (Amps) | 55 A |
