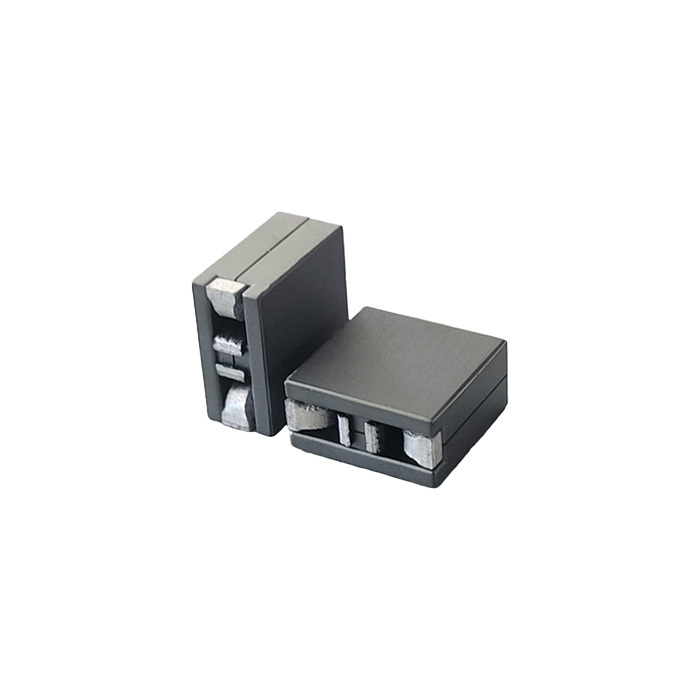

ATL-1Z120612SR10LT
FIXED IND 100NH 70A 0.125MOHMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
100 nH Unshielded Molded Inductor 70 A 0.125mOhm Nonstandard
Additional Information
Series: ATL-1Z120612SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±15% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.472"" L x 0.244"" W (12.00mm x 6.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.125mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 125A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.472"" (12.00mm) |
| Inductance | 100 nH |
| Current Rating (Amps) | 70 A |
