ATFC-0603-R10-GT
FIXED IND 100NH 100MA 7.5OHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC ATFC-0603-R10-GT is a 100 nH unshielded thin film inductor from the ATFC-0603 series. This surface mount component features a tight tolerance of ±2% and a DC resistance of 7.5 Ohms maximum. With a current rating of 100 mA and a Q factor of 15 at 300 MHz, it exhibits a self-resonant frequency of 1 GHz. The inductor is housed in a 0603 (1608 Metric) package, measuring 0.063" L x 0.031" W (1.60mm x 0.80mm) with a maximum seated height of 0.022" (0.55mm). Operating within a temperature range of -25°C to 85°C, this component is suitable for applications in mobile devices, wireless communications, and consumer electronics. Supplied on tape and reel (TR).
Additional Information
Series: ATFC-0603RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±2% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063"" L x 0.031"" W (1.60mm x 0.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Thin Film |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 7.5Ohm Max |
| Q @ Freq | 15 @ 300MHz |
| Frequency - Self Resonant | 1GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 300 MHz |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.022"" (0.55mm) |
| Inductance | 100 nH |
| Current Rating (Amps) | 100 mA |
Request a Quote
Clients Also Buy

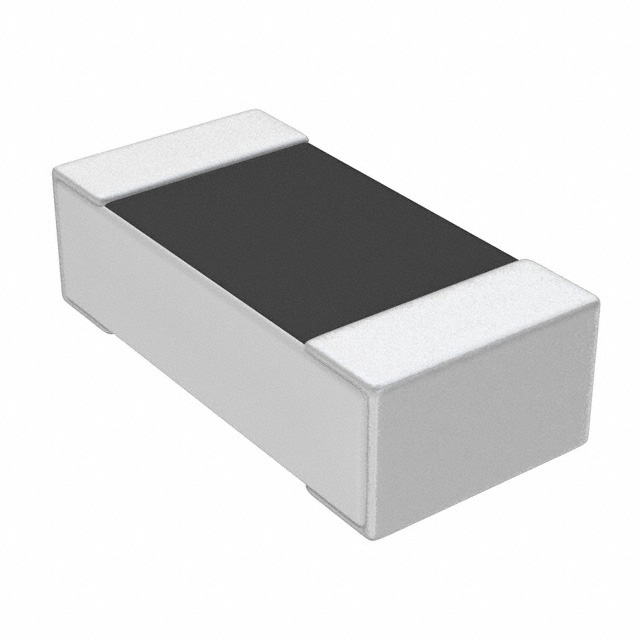

ATFC-0603-10N-FT
