ATCA-06-132M-V
FIXED IND 1.3MH 1A 585 MOHM THManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

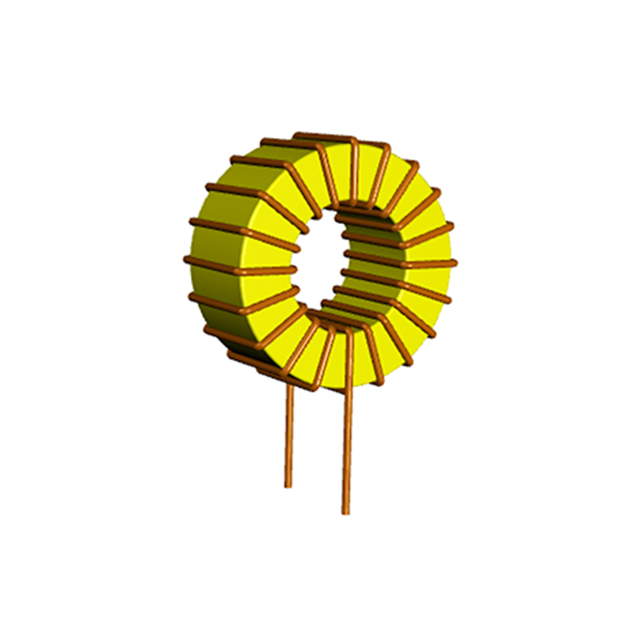

1.3 mH Unshielded Toroidal Inductor 1 A 585mOhm Max Radial, Vertical (Open)
Additional Information
Series: ATCARoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tray |
| Package / Case | Radial, Vertical (Open) |
| Size / Dimension | 1.260"" L x 0.630"" W (32.00mm x 16.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 105°C |
| DC Resistance (DCR) | 585mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | - |
| Inductance | 1.3 mH |
| Current Rating (Amps) | 1 A |
