ASPIAIG-H8540-2R2M-T
FIXED IND 2.2UH 6.1A 12 MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

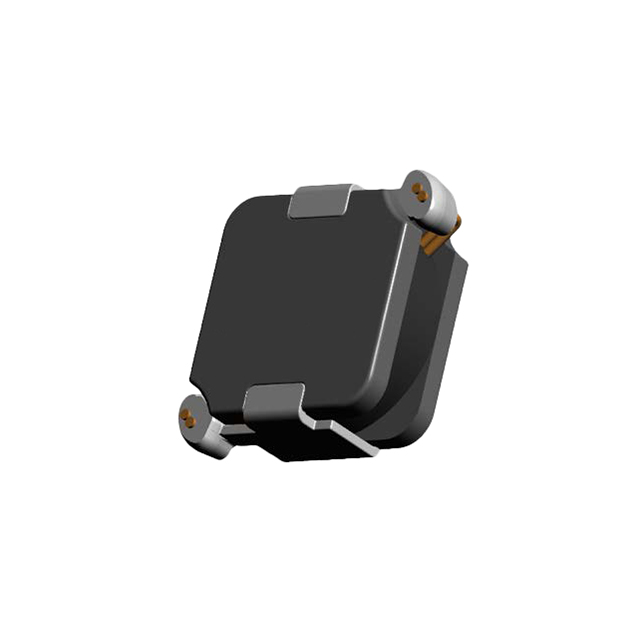

Abracon LLC ASPIAIG-H8540-2R2M-T is a shielded, wirewound drum core inductor with an inductance value of 2.2 µH. This component offers a DC resistance of 12mOhm and a current rating of 6.1A, with a saturation current (Isat) of 14A. Designed for surface mounting, it measures 0.346 inches (8.80mm) in length and 0.335 inches (8.50mm) in width, with a maximum seated height of 0.157 inches (4.00mm).
The ASPIAIG-H8540 series inductor operates within a temperature range of -40°C to 125°C and features a self-resonant frequency of 29MHz. It is AEC-Q200 qualified, making it suitable for automotive applications. The inductor is supplied on tape and reel, ensuring efficient placement in high-volume manufacturing environments. This component finds application in power supply circuits, DC-DC converters, and filtering stages across various electronic systems.
Additional Information
Series: ASPIAIG-H8540RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.346"" L x 0.335"" W (8.80mm x 8.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 12mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 29MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 14A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.157"" (4.00mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 6.1 A |
