ASPIAIG-H6530-6R8M-T
FIXED IND 6.8UH 4.5A 64 MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC's ASPIAIG-H6530-6R8M-T is a wirewound, shielded drum core inductor with a nominal inductance of 6.8 µH. This component features a current rating of 4.5 A and exhibits a DC resistance of 64 mOhm. The inductance tolerance is ±20%, with testing performed at 100 kHz. Its saturation current (Isat) is 4.5A. The inductor is designed for surface mounting and measures 0.280" L x 0.256" W (7.10mm x 6.50mm) with a maximum seated height of 0.126" (3.20mm). It operates within a temperature range of -40°C to 125°C and is AEC-Q200 qualified, making it suitable for automotive and industrial applications. The core material is metal. This part is supplied on Tape & Reel (TR) packaging.
Additional Information
Series: ASPIAIG-H6530RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.280"" L x 0.256"" W (7.10mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 64mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 14MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 4.5A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.126"" (3.20mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 4.5 A |
Request a Quote
Clients Also Buy

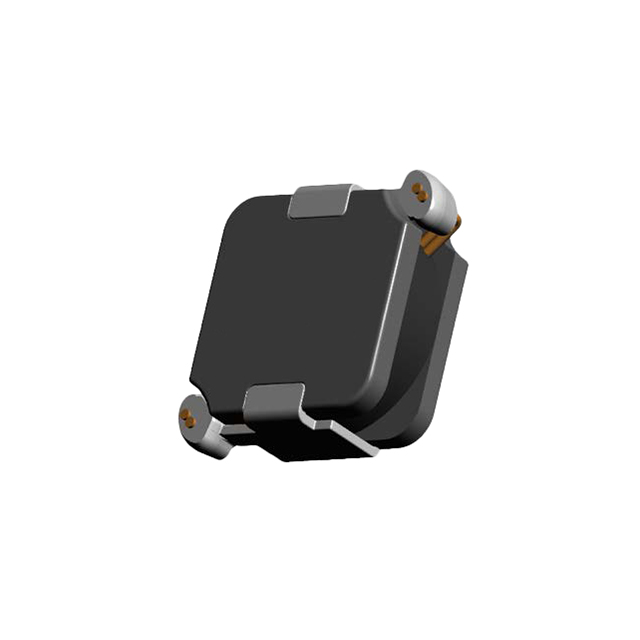

ASPIAIG-H6530-100M-T
