ASPIAIG-F1265-120M-T
FIXED IND 12UH 9.5A 20 MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

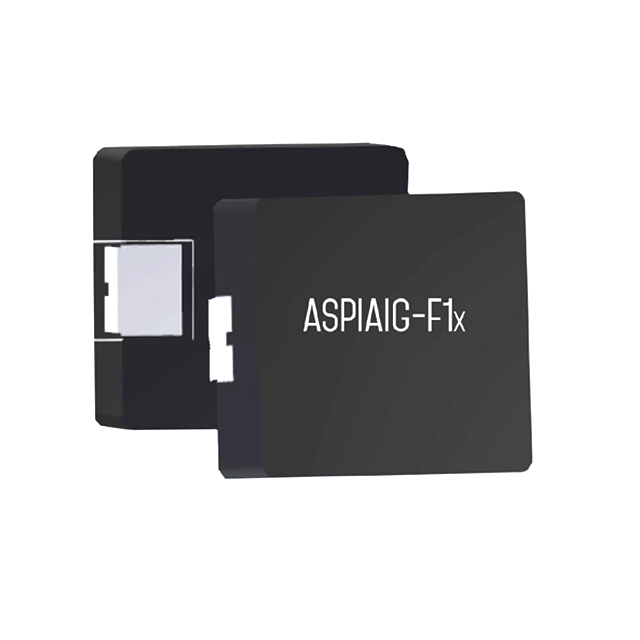

Abracon LLC ASPIAIG-F1 shielded molded inductor, part number ASPIAIG-F1265-120M-T, offers 12 µH inductance with a ±20% tolerance tested at 100 kHz. This component features a high current rating of 9.5 A and a low DC resistance of 20 mOhm maximum. Its saturation current (Isat) reaches 14 A, ensuring robust performance under demanding conditions. The compact surface mount package measures 13.50mm x 12.50mm with a maximum seated height of 6.50mm. Rated for operating temperatures from -40°C to 125°C and meeting AEC-Q200 standards, this inductor is suitable for automotive and industrial applications. It is supplied on tape and reel.
Additional Information
Series: ASPIAIG-F1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.531"" L x 0.492"" W (13.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 14A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 1265 |
| Height - Seated (Max) | 0.256"" (6.50mm) |
| Inductance | 12 µH |
| Current Rating (Amps) | 9.5 A |
