ASPI-F4030-120M-T
FIXED IND 12UH 2.7A 86.5 MOHMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

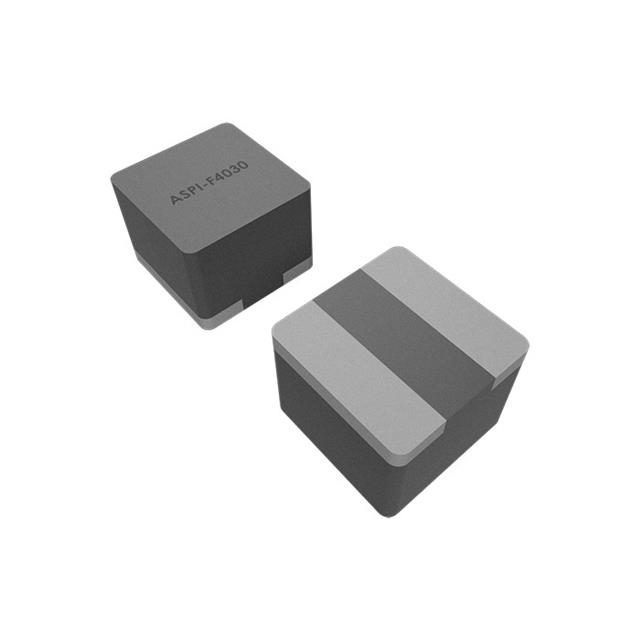

Abracon LLC ASPI-F4030 shielded molded inductor offers 12 µH inductance with a ±20% tolerance, tested at 100 kHz. This surface mount component features a current rating of 3.4 A and a saturation current (Isat) of 2.7 A. The DC resistance (DCR) is a maximum of 86.5 mOhm. Measuring 0.161 inches (4.10mm) square by 0.122 inches (3.10mm) high, this inductor is provided on tape and reel. Its shielded construction and robust current handling make it suitable for power management applications in automotive, industrial, and consumer electronics. The ASPI-F4030 series is designed for demanding performance requirements.
Additional Information
Series: ASPI-F4030RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.161"" L x 0.161"" W (4.10mm x 4.10mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 86.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 2.7A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 4030 |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Inductance | 12 µH |
| Current Rating (Amps) | 3.4 A |
