ASPI-F1060-2R2M-T
IND 2.2UH 20A 4.84MManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
2.2 µH Shielded Molded Inductor 20 A 4.84mOhm Max Nonstandard
Additional Information
Series: ASPI-F1060RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.469"" L x 0.433"" W (11.90mm x 11.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 4.84mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 30A |
| Material - Core | Alloy Powder |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.236"" (6.00mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 20 A |
Request a Quote
Clients Also Buy

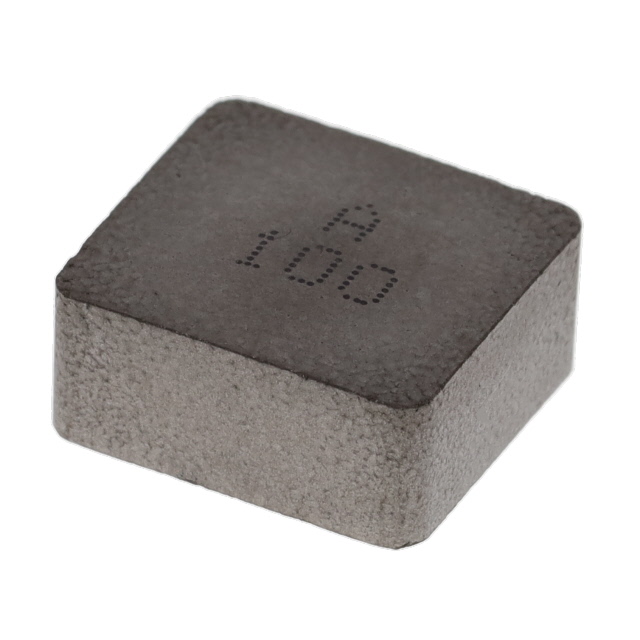

ASPI-F1060-100M-T
IND 10UH 9A 18.2M

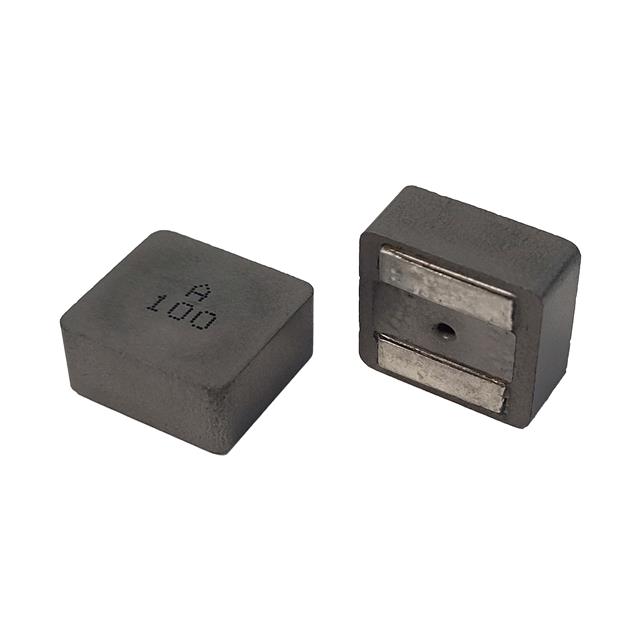

ASPI-F1060-1R0M-T
