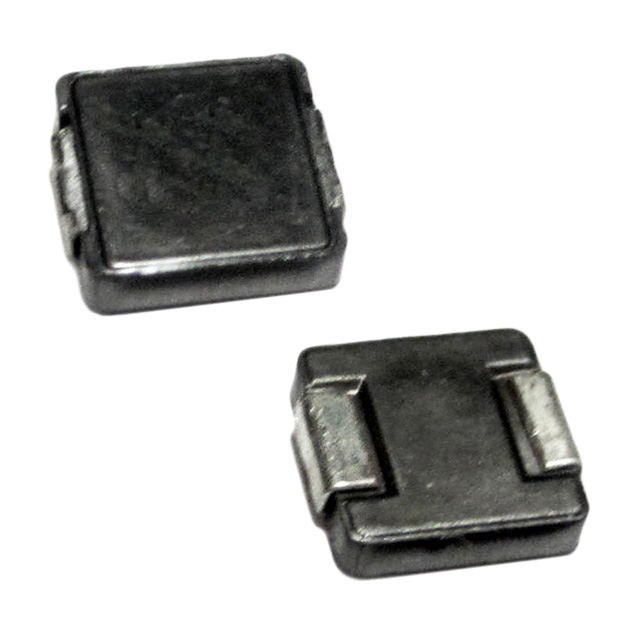

ASPI-7318-R10M-T
FIXED IND 100NH 30A 1.7 MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC ASPI-7318 series shielded drum core, wirewound inductor with a 100 nH inductance and ±20% tolerance. This surface-mount component features a 30 A current rating and a low DC resistance of 1.7 mOhm maximum. Designed for high current applications, it offers a saturation current (Isat) of 50 A. The ASPI-7318-R10M-T measures 7.30mm L x 6.80mm W with a maximum seated height of 3.00mm. It operates within a temperature range of -55°C to 125°C and is supplied on tape and reel. This inductor is suitable for power supply filtering and DC-DC converters in various industrial and automotive applications.
Additional Information
Series: ASPI-7318RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287"" L x 0.268"" W (7.30mm x 6.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 1.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 50A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 200 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.118"" (3.00mm) |
| Inductance | 100 nH |
| Current Rating (Amps) | 30 A |
