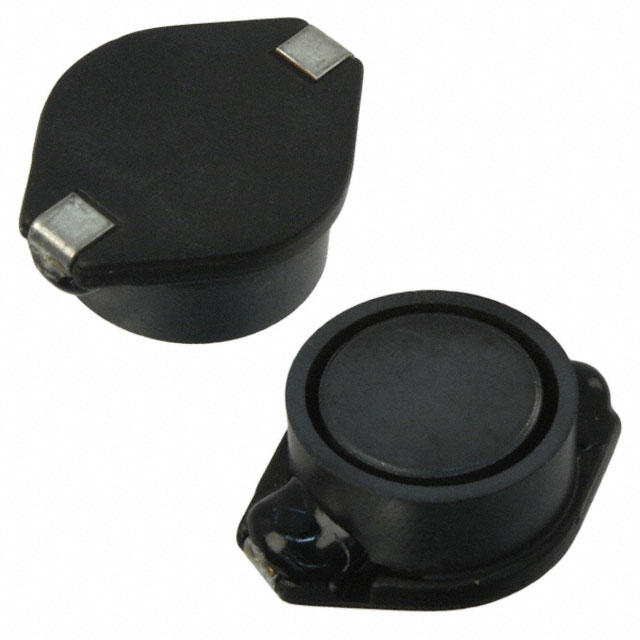

ASPI-1306S-470M-T
FIXED IND 47UH 2.4A 97 MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
47 µH Shielded Drum Core, Wirewound Inductor 2.4 A 97mOhm Max Nonstandard
Additional Information
Series: ASPI-1306SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.730"" L x 0.600"" W (18.54mm x 15.24mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 97mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Current - Saturation (Isat) | 4A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.300"" (7.62mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 2.4 A |
