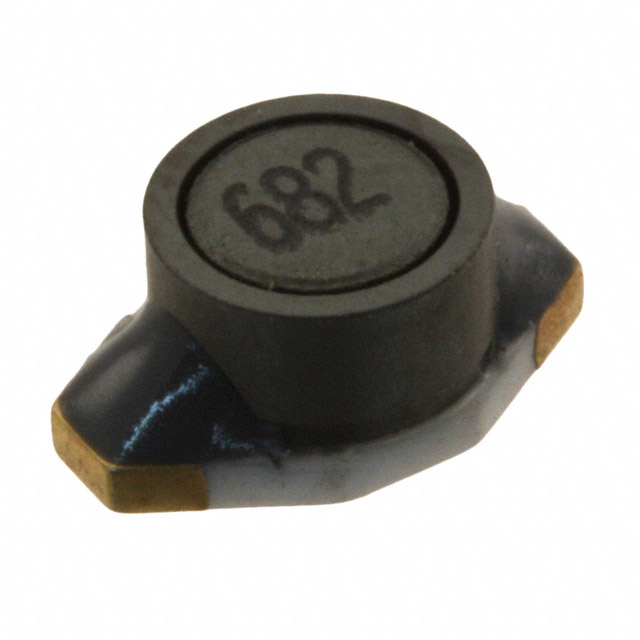

ASPI-0403S-822M-T
FIXED IND 8.2MH 30MA 29.81OHM SMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC ASPI-0403S series shielded wirewound inductor, part number ASPI-0403S-822M-T, offers an inductance value of 8.2 mH with a tight tolerance of ±20%. This surface mount component is designed for applications requiring precise inductance and is rated for a current of 30 mA. The maximum DC resistance is 29.81 Ohms, ensuring efficient power transfer. Its shielded construction minimizes electromagnetic interference, making it suitable for demanding environments. The inductor measures 0.260 inches by 0.175 inches with a seated height of 0.115 inches. Operating across a temperature range of -40°C to 85°C, this component finds utility in automotive, industrial, and consumer electronics sectors. Packaged on tape and reel for automated assembly.
Additional Information
Series: ASPI-0403SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.260"" L x 0.175"" W (6.60mm x 4.45mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 29.81Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.115"" (2.92mm) |
| Inductance | 8.2 mH |
| Current Rating (Amps) | 30 mA |
