ASPI-0320S-3R3N-T3
FIXED IND 3.3UH 1.24A 125MOHM SMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

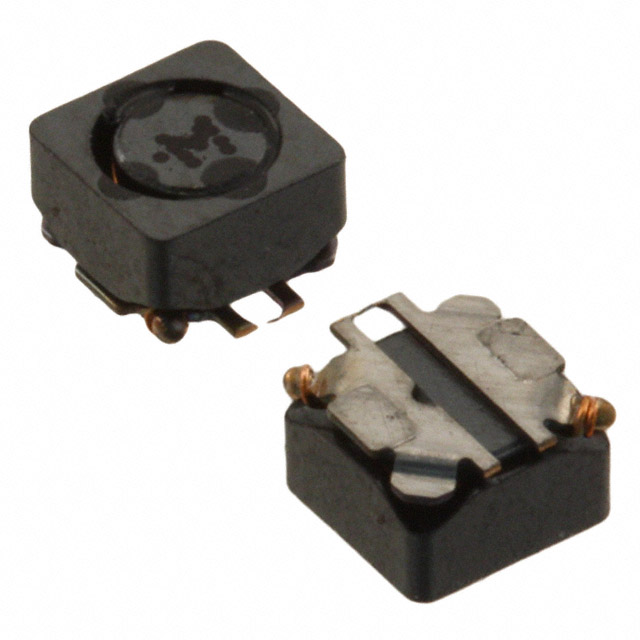

Abracon LLC ASPI-0320S series shielded drum core, wirewound inductor with part number ASPI-0320S-3R3N-T3. This component offers a nominal inductance of 3.3 µH with a ±30% tolerance, tested at 100 kHz. It features a current rating of 1.24 A and a saturation current (Isat) of 1.1 A. The maximum DC resistance (DCR) is 125 mOhm. The inductor is constructed with a ferrite core and a shielded design, measuring 3.20mm x 3.20mm with a maximum seated height of 2.00mm. This surface mount component operates within a temperature range of -25°C to 100°C and is supplied on tape and reel. Applications include power management and filtering in automotive and industrial electronics.
Additional Information
Series: ASPI-0320SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±30% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.126"" L x 0.126"" W (3.20mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -25°C ~ 100°C |
| DC Resistance (DCR) | 125mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 1.1A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 1.24 A |
