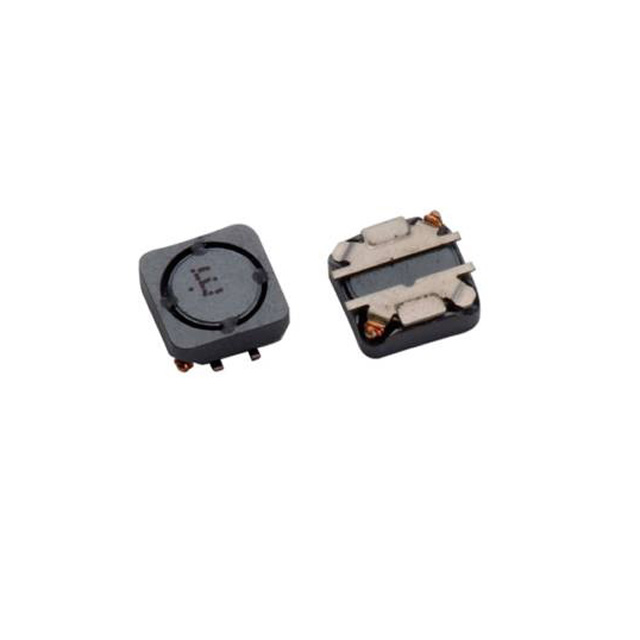

ASPI-0316S-100M-T3
FIXED IND 10UH 650MA 391MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC ASPI-0316S Series wirewound shielded drum core inductor. This component features 10 µH inductance with a ±20% tolerance, tested at 100 kHz. It has a rated current of 650 mA and a saturation current (Isat) of 600 mA. The maximum DC resistance (DCR) is 391 mOhm. Constructed with a ferrite core, this surface mount device measures 0.126 inches (3.20 mm) in length and width, with a maximum seated height of 0.059 inches (1.50 mm). The ASPI-0316S-100M-T3 is suitable for applications in consumer electronics, telecommunications, and industrial control systems. Packaged on tape and reel (TR).
Additional Information
Series: ASPI-0316SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.126"" L x 0.126"" W (3.20mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -25°C ~ 100°C |
| DC Resistance (DCR) | 391mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 600mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 650 mA |
