ASPI-0309-470M-T4
FIXED IND 47UH 220MA 3.3 OHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC ASPI-0309 series unshielded wirewound drum core inductor, part number ASPI-0309-470M-T4. This component offers an inductance value of 47 µH with a ±20% tolerance, tested at 100 kHz. It features a DC resistance (DCR) of 3.3 Ohms and a current rating of 220 mA, with a saturation current (Isat) of 210 mA. The device is constructed with a Nickel Zinc Ferrite (NiZn) core and is suitable for surface mount applications. Its dimensions are 0.118 inches by 0.118 inches (3.00mm x 3.00mm) with a maximum seated height of 0.035 inches (0.90mm). Operating temperature range is -30°C to 100°C. This component is commonly utilized in power supply filtering and signal processing applications across various electronic devices. Supplied on tape and reel (TR).
Additional Information
Series: ASPI-0309RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -30°C ~ 100°C |
| DC Resistance (DCR) | 3.3Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 210mA |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 220 mA |
Request a Quote
Clients Also Buy

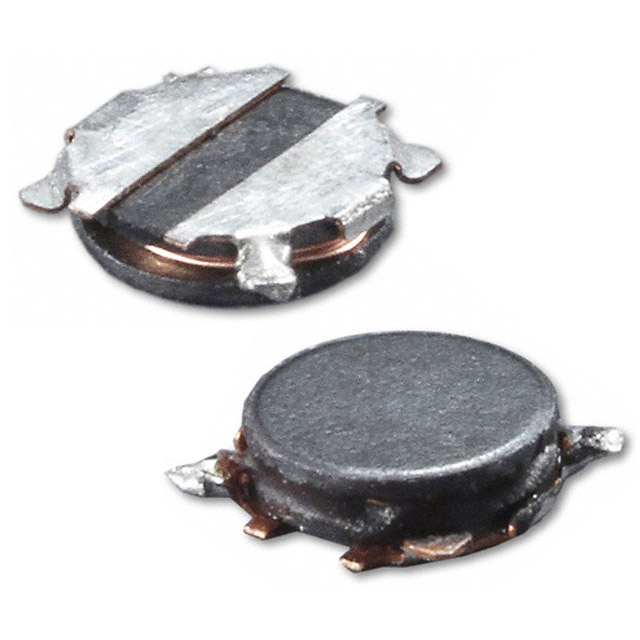

ASPI-0309-100M-T4
