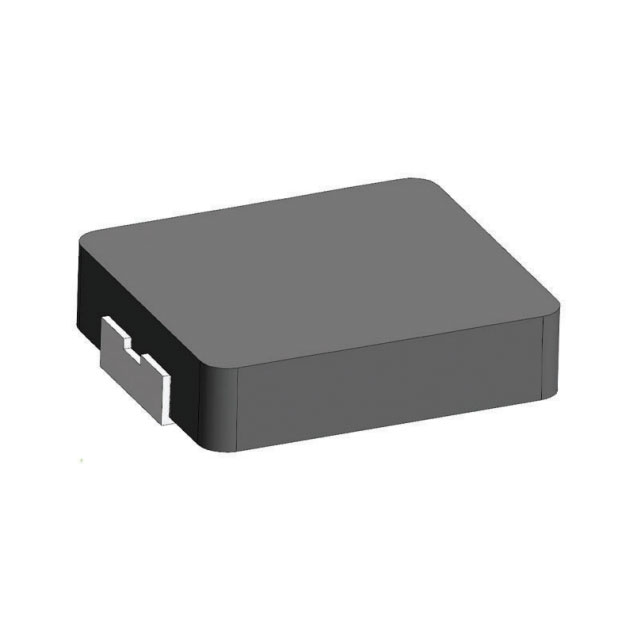

AMDLA4010Q-R47MT
FIXED IND 470NH 8.5A 18.5MOHM SMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
470 nH Shielded Molded Inductor 8.5 A 18.5mOhm Max Nonstandard
Additional Information
Series: AMDLA4010QRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.173"" L x 0.157"" W (4.40mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 18.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 11A |
| Material - Core | Metal |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Inductance | 470 nH |
| Current Rating (Amps) | 8.5 A |
