AIUR-16-391K
FIXED IND 390UH 250MA 1 OHM THManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

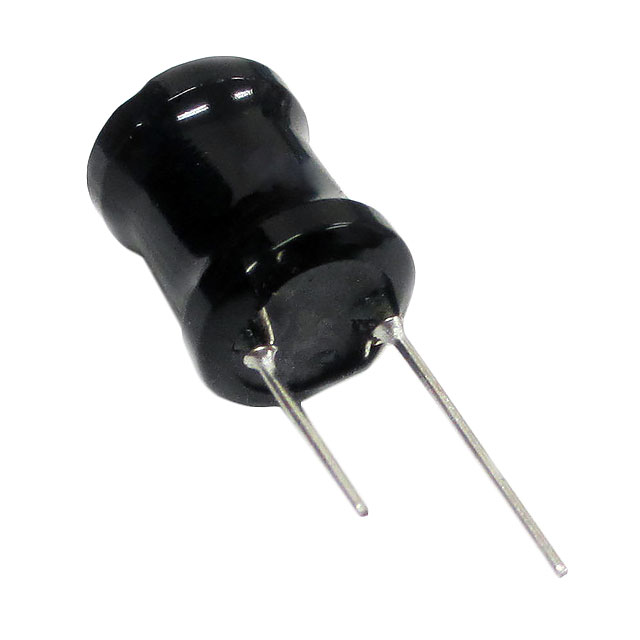

390 µH Unshielded Drum Core, Wirewound Inductor 250 mA 1Ohm Max Radial, Vertical Cylinder
Additional Information
Series: AIUR-16RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.276"" Dia (7.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 280mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 10 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.374"" (9.50mm) |
| Inductance | 390 µH |
| Current Rating (Amps) | 250 mA |
