AIUR-12-101K
FIXED IND 100UH 660MA 500MOHM THManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

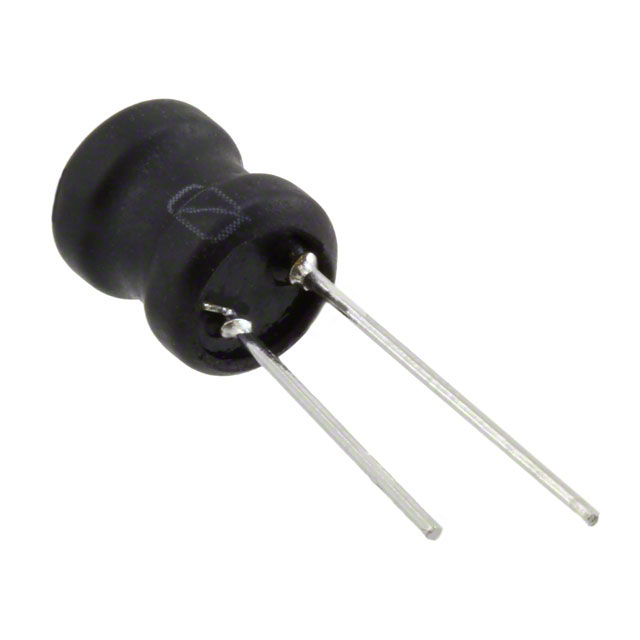

Abracon LLC AIUR-12 series, part number AIUR-12-101K, is a 100 µH unshielded drum core, wirewound inductor. This through-hole component features a radial, vertical cylinder package with a maximum current rating of 660 mA and a maximum DC resistance of 500 mOhm. The inductance tolerance is ±10% and it operates at a test frequency of 100 kHz with a Q factor of 30. The self-resonant frequency is 2 MHz. The core material is ferrite, and the component dimensions are 0.283 inches (7.20mm) in diameter and 0.413 inches (10.50mm) in height. Operating temperature range is -40°C to 85°C. This inductor is commonly utilized in power supply filtering and general-purpose filtering applications within the consumer electronics and industrial automation sectors.
Additional Information
Series: AIUR-12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.283"" Dia (7.20mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | 30 @ 100kHz |
| Frequency - Self Resonant | 2MHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.413"" (10.50mm) |
| Inductance | 100 µH |
| Current Rating (Amps) | 660 mA |
