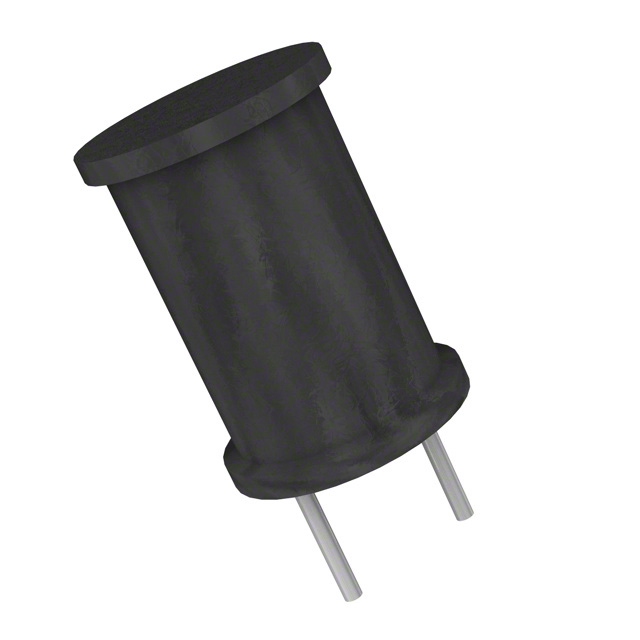

AIUR-02H-2R2K
FIXED IND 2.2UH 3.2A 26 MOHM THManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC's AIUR-02H series offers a 2.2 µH unshielded wirewound drum core inductor. This through-hole component, part number AIUR-02H-2R2K, features a radial, vertical cylinder package with a maximum DC resistance of 26 mOhm and a current rating of 3.2 A. Its inductance tolerance is ±10%. Tested at 7.96 MHz, it achieves a Q factor of 15. The inductor's core is constructed from ferrite. This component is suitable for applications in power supply circuits and general filtering within the consumer electronics and industrial sectors.
Additional Information
Series: AIUR-02HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.335"" Dia (8.50mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 6.3A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 7.96 MHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.472"" (12.00mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 3.2 A |
