AISR-01-682J
FIXED IND 6.8MH 35MA 9.7 OHM THManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
6.8 mH Shielded Drum Core, Wirewound Inductor 35 mA 9.7Ohm Max Radial, Vertical Cylinder
Additional Information
Series: AISR-01RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.425"" Dia (10.80mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 9.7Ohm Max |
| Q @ Freq | 100 @ 50kHz |
| Frequency - Self Resonant | 320kHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.551"" (14.00mm) |
| Inductance | 6.8 mH |
| Current Rating (Amps) | 35 mA |
Request a Quote
Clients Also Buy

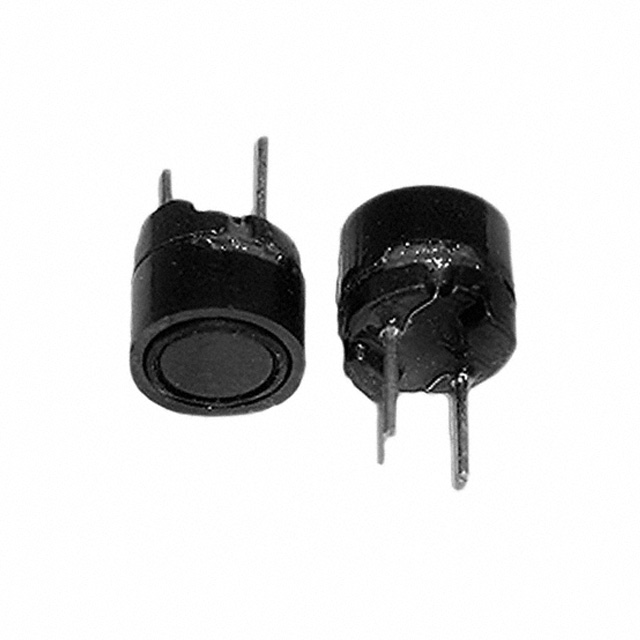

AISR-01-104J
