AISM-1210H-150K-T
FIXED IND 15UH 250MA 740MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC's AISM-1210H-150K-T is a fixed wirewound inductor with a 15 µH inductance value and a ±10% tolerance. Engineered for surface mount applications, this unshielded component features a compact 1210 (3225 Metric) package, measuring 0.126" L x 0.098" W (3.20mm x 2.50mm) with a seated height of 0.094" (2.40mm). It offers a current rating of 250 mA and a maximum DC resistance of 740 mOhm. The AISM-1210H series component exhibits a Q factor of 15 at 2.52 MHz and a self-resonant frequency of 26 MHz, making it suitable for applications in consumer electronics and industrial control systems. This component is supplied on tape and reel.
Additional Information
Series: AISM-1210HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 740mOhm Max |
| Q @ Freq | 15 @ 2.52MHz |
| Frequency - Self Resonant | 26MHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | - |
| Inductance Frequency - Test | 2.52 MHz |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.094"" (2.40mm) |
| Inductance | 15 µH |
| Current Rating (Amps) | 250 mA |
Request a Quote
Clients Also Buy

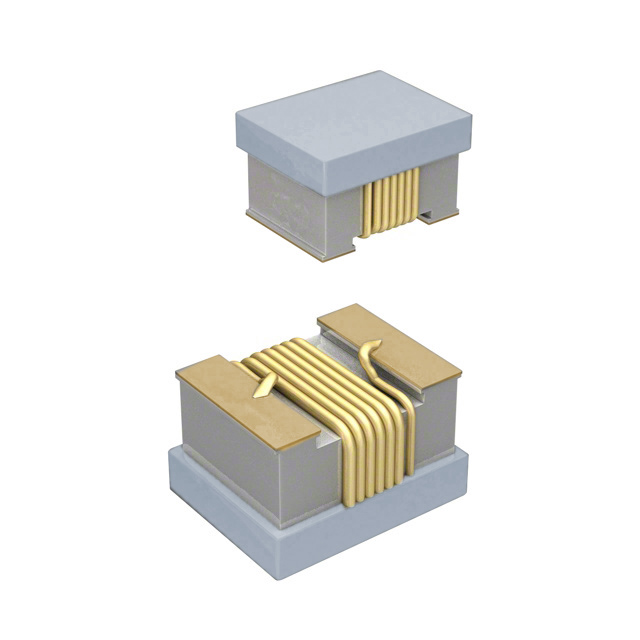

AISM-1210H-100K-T
