AISC-0402F-R13K-T
FIXED INDUCTORManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC's AISC-0402F-R13K-T is a wirewound, unshielded drum core inductor with a nominal inductance of 130 nH, specified at 100 MHz. This component features a maximum DC resistance of 230 mOhms and a current rating of 640 mA. The series AISC-0402F is housed in a compact 0402 (1005 Metric) surface-mount package with dimensions of 0.043" L x 0.024" W (1.10mm x 0.60mm) and a seated height of 0.028" (0.70mm). Its self-resonant frequency reaches 1 GHz. This inductor is suitable for applications in consumer electronics, telecommunications, and automotive systems where efficient signal filtering and energy storage are critical. The product is supplied on tape and reel.
Additional Information
Series: AISC-0402FRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.043"" L x 0.024"" W (1.10mm x 0.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| Inductance | 130 nH |
| Current Rating (Amps) | 640 mA |
Request a Quote
Clients Also Buy

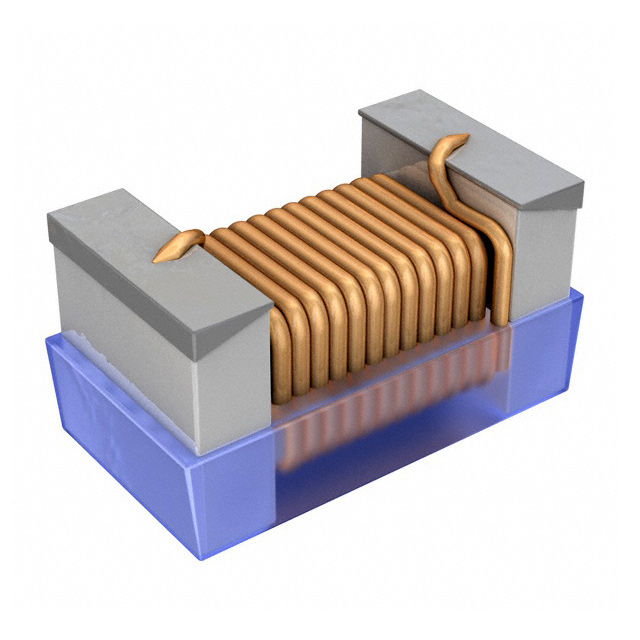

AISC-0402F-18NJ-T
