AISC-0402-2N7J-T
FIXED INDUCTOR 0402 SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

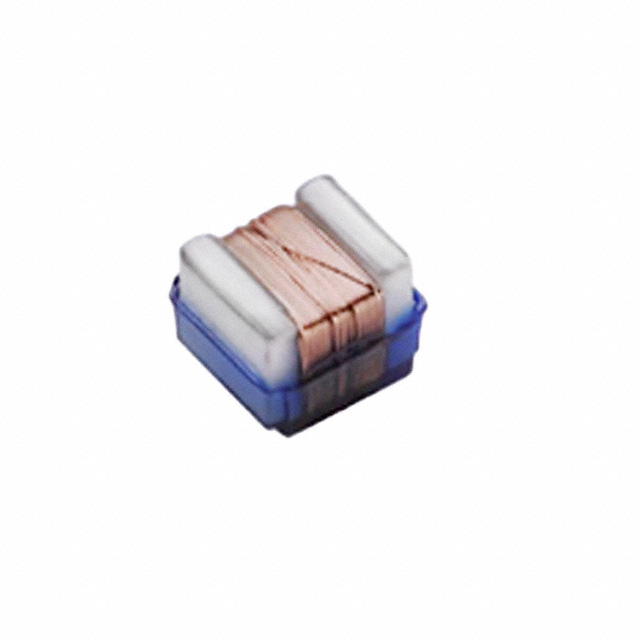

Abracon LLC AISC-0402 series fixed inductor, part number AISC-0402-2N7J-T. This unshielded, wirewound drum core inductor offers an inductance value of 2.7 nH with a ±5% tolerance, tested at 250 MHz. It features a maximum DC resistance of 120 mOhms and a current rating of 640 mA. The component has a self-resonant frequency of 10.4 GHz and a Q factor of 13 at 250 MHz. Designed for surface mounting, it is packaged in a 0402 (1005 Metric) case measuring 0.047" L x 0.025" W (1.19mm x 0.64mm) with a maximum seated height of 0.026" (0.66mm). Operating temperature range is -40°C to 125°C. This component is suitable for high-frequency applications found in wireless communications and consumer electronics. Supplied on tape and reel.
Additional Information
Series: AISC-0402RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.047"" L x 0.025"" W (1.19mm x 0.64mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 13 @ 250MHz |
| Frequency - Self Resonant | 10.4GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.026"" (0.66mm) |
| Inductance | 2.7 nH |
| Current Rating (Amps) | 640 mA |
