AIML-1206HC-2R2M-T
FIXED IND 2.2UH 1.3A 150MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

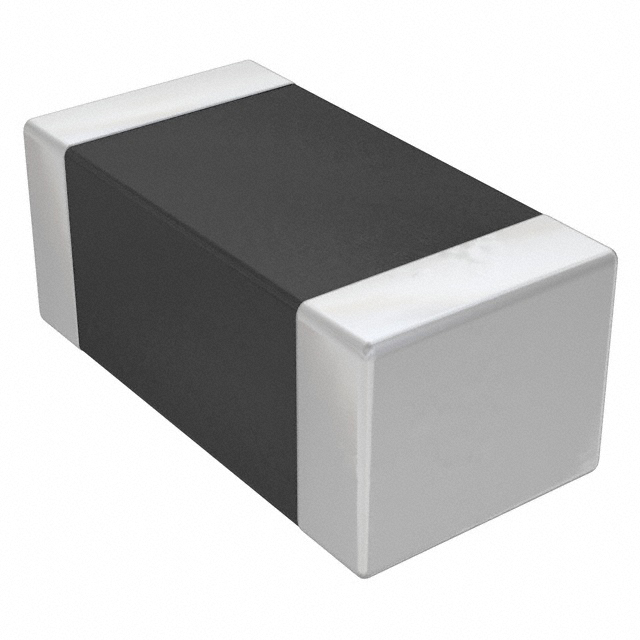

Abracon LLC AIML-1206HC series multilayer inductor, part number AIML-1206HC-2R2M-T. This shielded component offers an inductance of 2.2 µH with a ±20% tolerance, tested at 1 MHz. It features a current rating of 1.3 A and a saturation current (Isat) of 250mA, with a DC resistance of 150 mOhm. The device is constructed with a ferrite core and is designed for surface mounting in a 1206 (3216 Metric) package, measuring 0.126" L x 0.063" W x 0.055" H. Operating temperature range is -55°C to 125°C. This component is suitable for applications in automotive, industrial, and consumer electronics. Packaging is provided on Tape & Reel (TR).
Additional Information
Series: AIML-1206HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 150mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 58MHz |
| Ratings | - |
| Current - Saturation (Isat) | 250mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 1206 (3216 Metric) |
| Height - Seated (Max) | 0.055"" (1.40mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 1.3 A |
